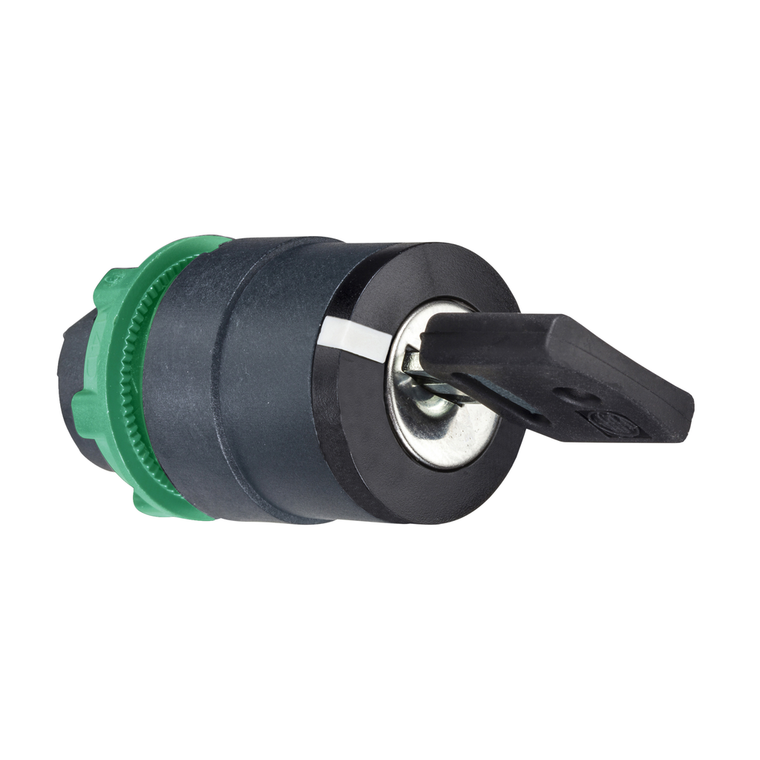

Schneider Electric ZB5AG214 Key Selector Operating He

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AG214 Key Selector Operating He

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AG214

UPC:

3.38911E+12

MPN:

Condition:

New

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Mounting Diameter:

22 mm

Cad Overall Width:

29 mm

Warranty:

18 months

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Mechanical Durability:

1000000 cycles

Ik Degree Of Protection:

IK06 IEC 50102

China Rohs Regulation:

X

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Sale Per Indivisible Quantity:

1

Operator Position Information:

2 positions 90°

Operator Profile:

black key switch

Net Weight:

0.057 kg

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Range Of Product:

Harmony XB5 || Harmony XALF

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Head Type:

standard

Cad Overall Height:

29 mm

Ambient Air Temperature For Storage:

-40-70 °C

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Mercury Free:

Yes

Device Presentation:

basic element

Device Short Name:

ZB5

Circularity Profile:

ENVEOLI1710010EN

Cad Overall Depth:

72 mm

Environmental Disclosure:

ENVPEP1710010EN

Key Withdrawal Position:

left

Shape Of Signaling Unit Head:

round

Protective Treatment:

TH

Sustainable Offer Status:

Green Premium product

Rohs Exemption Information:

Yes

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Ambient Air Temperature For Operation:

-40-70 °C

Product Certifications:

BV || UL Listed || LROS (Lloyds register of shipping) || DNV || GL || CSA

Overvoltage Category:

class II IEC 60536

Product Or Component Type:

head for key selector switch

Standards:

EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || UL 508 || JIS C8201-1

Type Of Keylock:

key 520E

Bezel Material:

dark grey plastic

Electrical Composition Code:

C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Type Of Operator:

stay put
