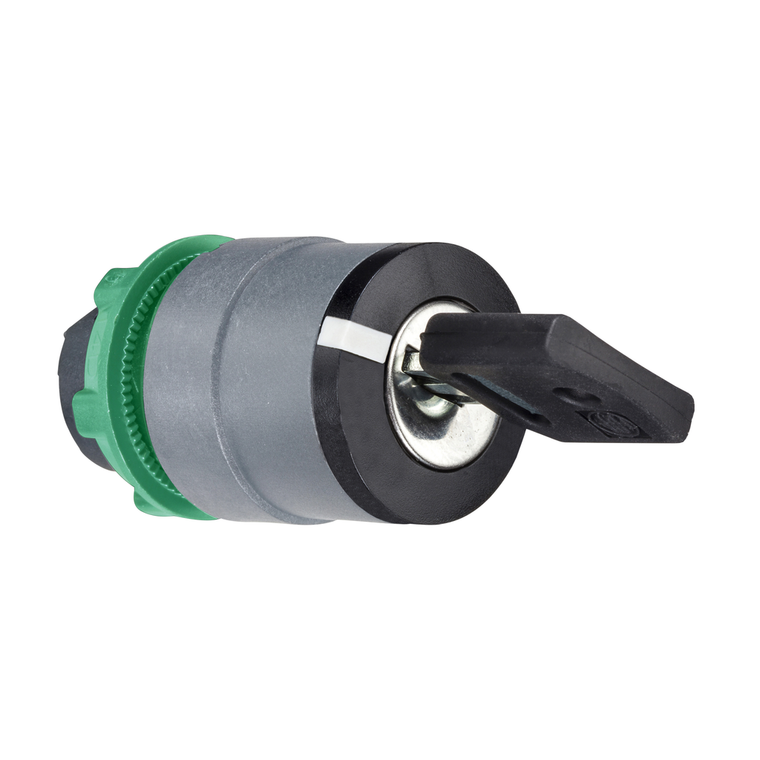

Schneider Electric ZB5AG3C0 Key Selector Operating He
Schneider Electric
$62.70
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This head with key provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units to provide a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP66, making it ideal for operation in harsh environments.
- Cad Overall Height:
- 29 mm
- Head Type:
- standard
- Operator Position Information:
- 3 positions +/- 45°
- Range Of Product:
- Harmony XB5
- Cad Overall Width:
- 29 mm
- Product Certifications:
- DNV || UL Listed || GL || BV || CSA || LROS (Lloyds register of shipping)
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Overvoltage Category:
- class II IEC 60536
- Ik Degree Of Protection:
- IK06 IEC 50102
- Sale Per Indivisible Quantity:
- 1
- Ambient Air Temperature For Storage:
- -40-70 °C
- China Rohs Regulation:
- X
- Cad Overall Depth:
- 72 mm
- Net Weight:
- 0.057 kg
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Type Of Operator:
- stay put
- Key Withdrawal Position:
- center
- Mechanical Durability:
- 1000000 cycles
- Type Of Keylock:
- key 455
- Shape Of Signaling Unit Head:
- round
- Bezel Material:
- plastic colour plated grey
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Protective Treatment:
- TH
- Operator Profile:
- black key switch
- Ambient Air Temperature For Operation:
- -40-70 °C
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Mounting Diameter:
- 22 mm
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Device Presentation:
- basic element
- Product Or Component Type:
- head for key selector switch
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Device Short Name:
- ZB5
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Standards:
- EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-1
- Datasheet:
- View
