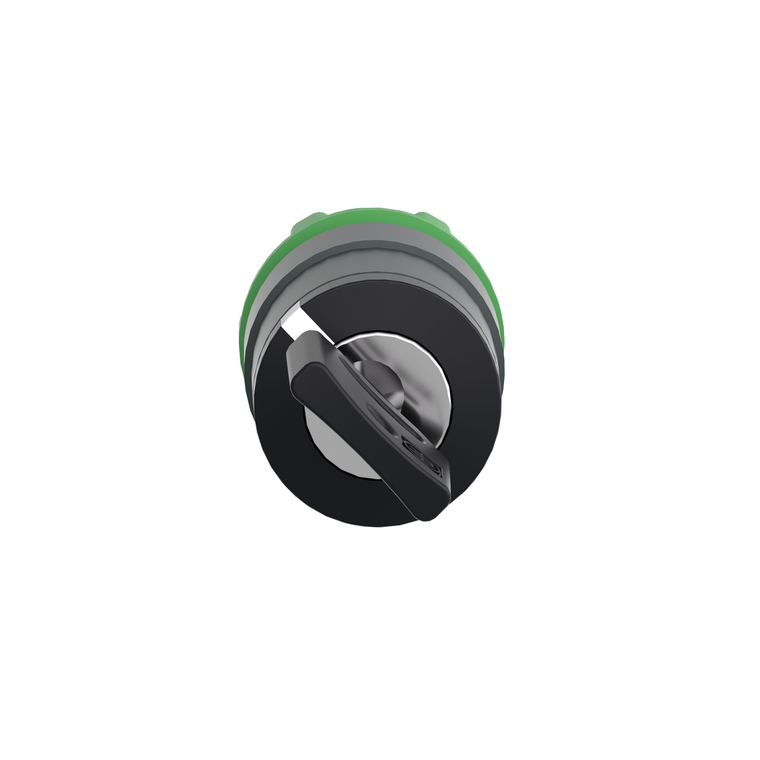

Schneider Electric ZB5AG412 Key Selector Operating He

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AG412 Key Selector Operating He

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AG412

UPC:

3389110135213

MPN:

Condition:

New

China Rohs Regulation:

X

Rohs Exemption Information:

Yes

Ambient Air Temperature For Operation:

-40-70 °C

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Electrical Composition Code:

C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3

Key Withdrawal Position:

in any position

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Mounting Diameter:

22 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Type Of Keylock:

key 421E

Product Or Component Type:

head for key selector switch

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Type Of Operator:

stay put

Protective Treatment:

TH

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Net Weight:

0.057 kg

Standards:

UL 508 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-1 || IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1

Cad Overall Width:

29 mm

Head Type:

standard

Device Presentation:

basic element

Overvoltage Category:

class II IEC 60536

Mercury Free:

Yes

Warranty:

18 months

Ambient Air Temperature For Storage:

-40-70 °C

Ik Degree Of Protection:

IK06 IEC 50102

Operator Profile:

black key switch

Sustainable Offer Status:

Green Premium product

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Cad Overall Depth:

72 mm

Shape Of Signaling Unit Head:

round

Circularity Profile:

ENVEOLI1710010EN

Sale Per Indivisible Quantity:

1

Mechanical Durability:

1000000 cycles

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Device Short Name:

ZB5

Operator Position Information:

2 positions 90°

Bezel Material:

dark grey plastic

Range Of Product:

Harmony XB5

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Product Certifications:

DNV || CSA || BV || UL Listed || LROS (Lloyds register of shipping) || GL

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Cad Overall Height:

29 mm

Environmental Disclosure:

ENVPEP1710010EN
