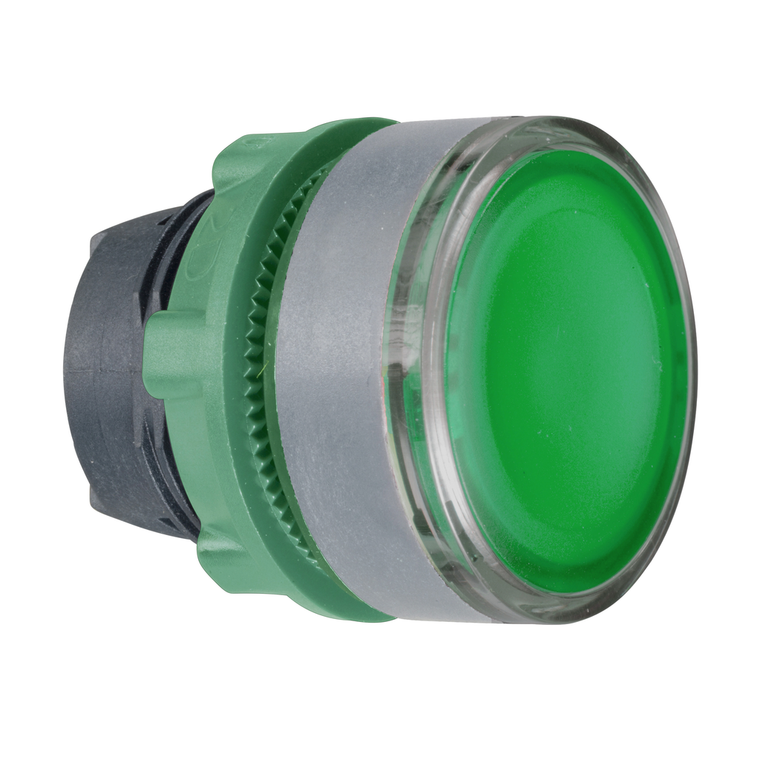

Schneider Electric ZB5AH033C0 Double Ill. Pushbutton He

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AH033C0 Double Ill. Pushbutton He

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AH033C0

UPC:

3606489766580

MPN:

Condition:

New

Rohs Exemption Information:

Yes

Cad Overall Depth:

30 mm

Toxic Heavy Metal Free:

Yes

Shape Of Signaling Unit Head:

round

Mounting Diameter:

22 mm

Reach Free Of Svhc:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Product Or Component Type:

head for illuminated push-button

Product Compatibility:

universal LED

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Type Of Operator:

push-push

Sale Per Indivisible Quantity:

1

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529

Ambient Air Temperature For Storage:

-40-70 °C

Product Certifications:

LROS (Lloyds register of shipping) || CSA || UL Listed || BV || DNV || GL

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

China Rohs Regulation:

X

Ik Degree Of Protection:

IK05 IEC 50102

Protective Treatment:

TH

Operator Profile:

green flush, unmarked

Electrical Shock Protection Class:

class II IEC 60536

Mechanical Durability:

5000000 cycles

Mercury Free:

Yes

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Device Short Name:

ZB5

Cad Overall Width:

29 mm

Bezel Material:

plastic colour plated grey

Range Of Product:

Harmony XB5

Standards:

EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || JIS C8201-5-1 || JIS C8201-1

Ambient Air Temperature For Operation:

-25-70 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Head Type:

standard

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Cad Overall Height:

29 mm

Device Presentation:

basic element

Electrical Composition Code:

M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Net Weight:

0.017 kg

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)
