Schneider Electric ZB5AH05 Push / Push To Release He
Schneider Electric
$17.60
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

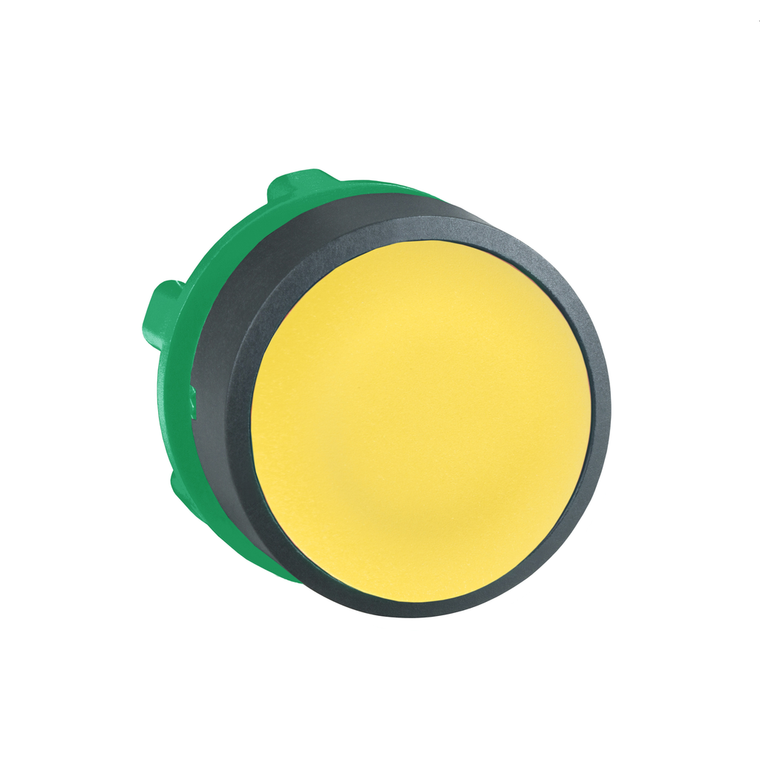

This yellow flush button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Type Of Operator:
- push-push
- Rohs Exemption Information:
- Yes
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Shape Of Signaling Unit Head:
- round
- Overvoltage Category:
- class II IEC 60536
- Circularity Profile:
- ENVEOLI1710010EN
- Standards:
- UL 508 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
- Range Of Product:
- Harmony XB5
- Product Certifications:
- DNV || UL Listed || LROS (Lloyds register of shipping) || CSA || GL || BV
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mercury Free:
- Yes
- Ik Degree Of Protection:
- IK03 IEC 50102
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Operator Profile:
- yellow flush, unmarked
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Warranty:
- 18 months
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation:
- X
- Cad Overall Depth:
- 28 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Cad Overall Height:
- 29 mm
- Environmental Disclosure:
- ENVPEP1710010EN
- Mechanical Durability:
- 2000000 cycles
- Sale Per Indivisible Quantity:
- 1
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Ambient Air Temperature For Operation:
- -40-70 °C
- Bezel Material:
- dark grey plastic
- Electrical Composition Code:
- C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C9 3 single front mounting
- Cad Overall Width:
- 29 mm
- Head Type:
- standard
- Product Or Component Type:
- head for non-illuminated push-button
- Sustainable Offer Status:
- Green Premium product
- Device Presentation:
- basic element
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Device Short Name:
- ZB5
- Net Weight:
- 0.018 kg
- Protective Treatment:
- TH
- Mounting Diameter:
- 22 mm
- Datasheet:
- View
