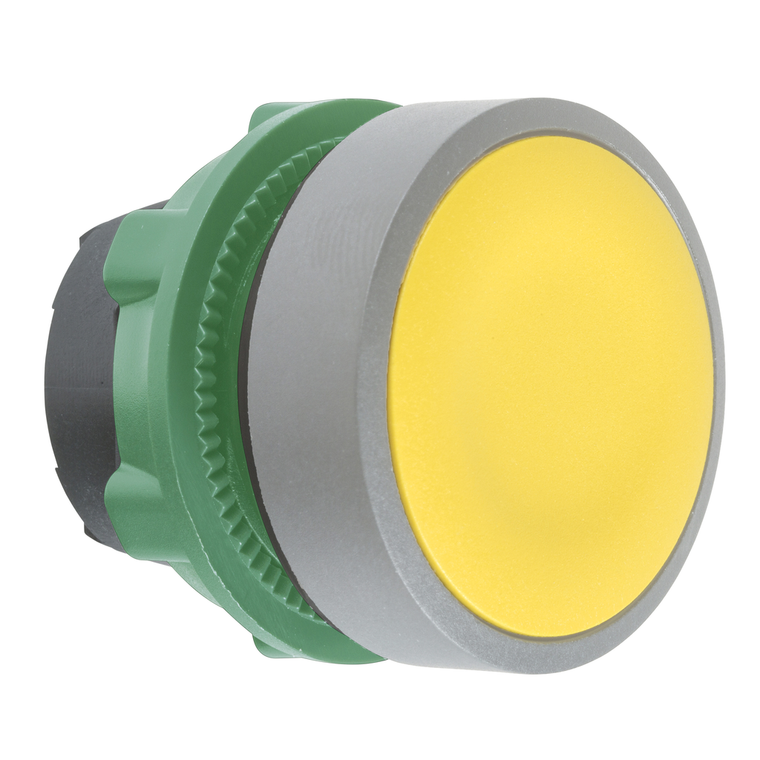

Schneider Electric ZB5AH05C0 Push / Push To Release He

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AH05C0 Push / Push To Release He

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AH05C0

UPC:

3606489766740

MPN:

Condition:

New

Operator Profile:

yellow flush, unmarked

Protective Treatment:

TH

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Reach Free Of Svhc:

Yes

Net Weight:

0.018 kg

Type Of Operator:

push-push

Shape Of Signaling Unit Head:

round

Ik Degree Of Protection:

IK03 IEC 50102

Device Short Name:

ZB5

Electrical Composition Code:

C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C9 3 single front mounting

Rohs Exemption Information:

Yes

Cad Overall Width:

29 mm

Mechanical Durability:

2000000 cycles

Toxic Heavy Metal Free:

Yes

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Product Certifications:

DNV || UL Listed || LROS (Lloyds register of shipping) || CSA || GL || BV

Bezel Material:

plastic colour plated grey

Cad Overall Height:

29 mm

Sale Per Indivisible Quantity:

1

Head Type:

standard

Overvoltage Category:

class II IEC 60536

Mounting Diameter:

22 mm

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Cad Overall Depth:

28 mm

Ambient Air Temperature For Operation:

-40-70 °C

Ambient Air Temperature For Storage:

-40-70 °C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Range Of Product:

Harmony XB5

Product Or Component Type:

head for non-illuminated push-button

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

China Rohs Regulation:

X

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m
