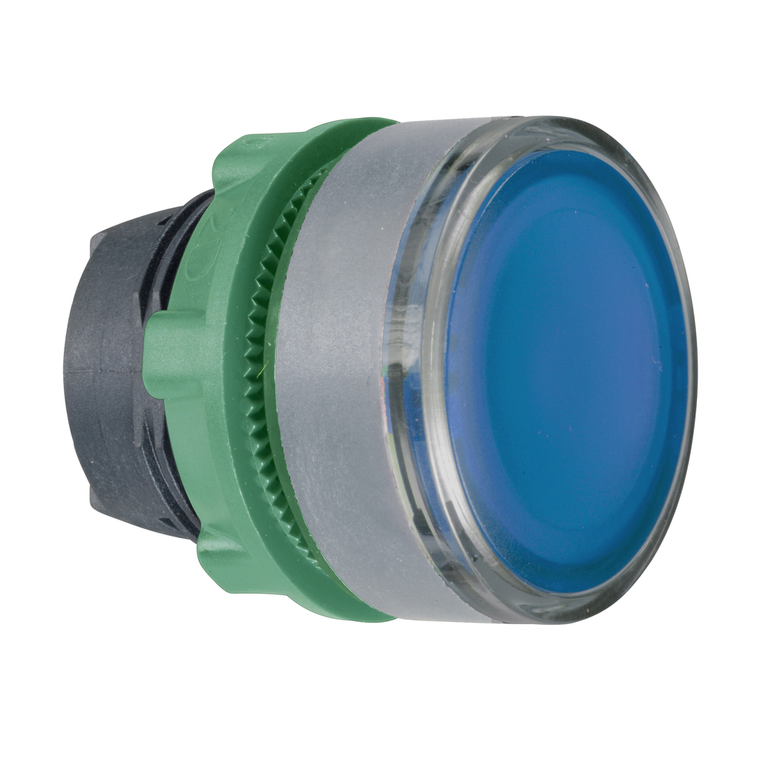

Schneider Electric ZB5AH063C0 Double Ill. Pushbutton He
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
- Product Certifications:
- GL || CSA || LROS (Lloyds register of shipping) || BV || DNV || UL Listed
- Device Presentation:
- basic element
- Cad Overall Depth:
- 30 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Device Short Name:
- ZB5
- Cad Overall Width:
- 29 mm
- Product Compatibility:
- universal LED
- Protective Treatment:
- TH
- Shape Of Signaling Unit Head:
- round
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Standards:
- EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || UL 508 || JIS C8201-1
- Electrical Composition Code:
- M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
- Range Of Product:
- Harmony XB5
- Mechanical Durability:
- 5000000 cycles
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Ambient Air Temperature For Storage:
- -40-70 °C
- Head Type:
- standard
- Type Of Operator:
- push-push
- Ambient Air Temperature For Operation:
- -25-70 °C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Operator Profile:
- blue flush, unmarked
- Toxic Heavy Metal Free:
- Yes
- Product Or Component Type:
- head for illuminated push-button
- China Rohs Regulation:
- X
- Cad Overall Height:
- 29 mm
- Rohs Exemption Information:
- Yes
- Mounting Diameter:
- 22 mm
- Mercury Free:
- Yes
- Bezel Material:
- plastic colour plated grey
- Ik Degree Of Protection:
- IK05 IEC 50102
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Sale Per Indivisible Quantity:
- 1
- Reach Free Of Svhc:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Net Weight:
- 0.017 kg
- Electrical Shock Protection Class:
- class II IEC 60536
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
