Schneider Electric ZB5AH43 Double Ill. Pushbutton Ha
Schneider Electric
$29.40
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AH43 Double Ill. Pushbutton Ha
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

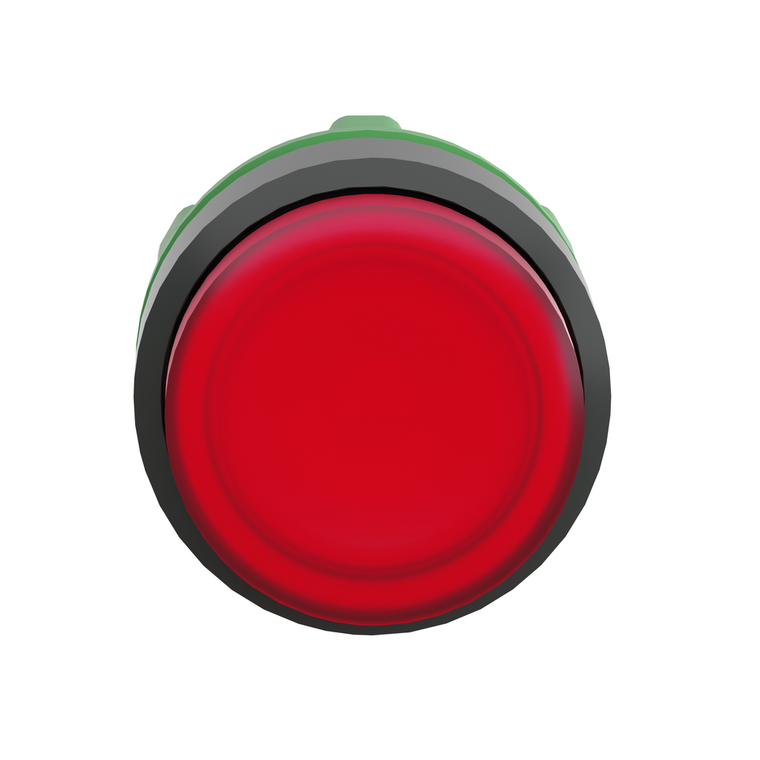

This red projecting illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is also distinguishable by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Ik Degree Of Protection:
- IK05 IEC 50102
- Mounting Diameter:
- 22 mm
- Sale Per Indivisible Quantity:
- 1
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Electrical Composition Code:
- M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
- Device Short Name:
- ZB5
- Standards:
- IEC 60947-5-1 || IEC 60947-1 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || IEC 60947-5-4 || JIS C8201-1
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- head for illuminated push-button
- Ip Degree Of Protection:
- IP66 IEC 60529
- Product Certifications:
- GL || DNV || CSA || UL Listed || LROS (Lloyds register of shipping) || BV
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Width:
- 29 mm
- Protective Treatment:
- TH
- Mechanical Durability:
- 5000000 cycles
- Shape Of Signaling Unit Head:
- round
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Device Presentation:
- basic element
- Environmental Disclosure:
- ENVPEP1710010EN
- Bezel Material:
- dark grey plastic
- Head Type:
- standard
- Net Weight:
- 0.017 kg
- Operator Profile:
- red projecting, unmarked
- Ambient Air Temperature For Storage:
- -40-70 °C
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Height:
- 29 mm
- Electrical Shock Protection Class:
- class II IEC 60536
- Range Of Product:
- Harmony XB5
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Type Of Operator:
- push-push
- Product Compatibility:
- universal LED
- Circularity Profile:
- ENVEOLI1710010EN
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Operation:
- -25-70 °C
- Cad Overall Depth:
- 33 mm
- Warranty:
- 18 months
