Schneider Electric ZB5AJ5 Selector Operating Head
Schneider Electric
$29.40
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

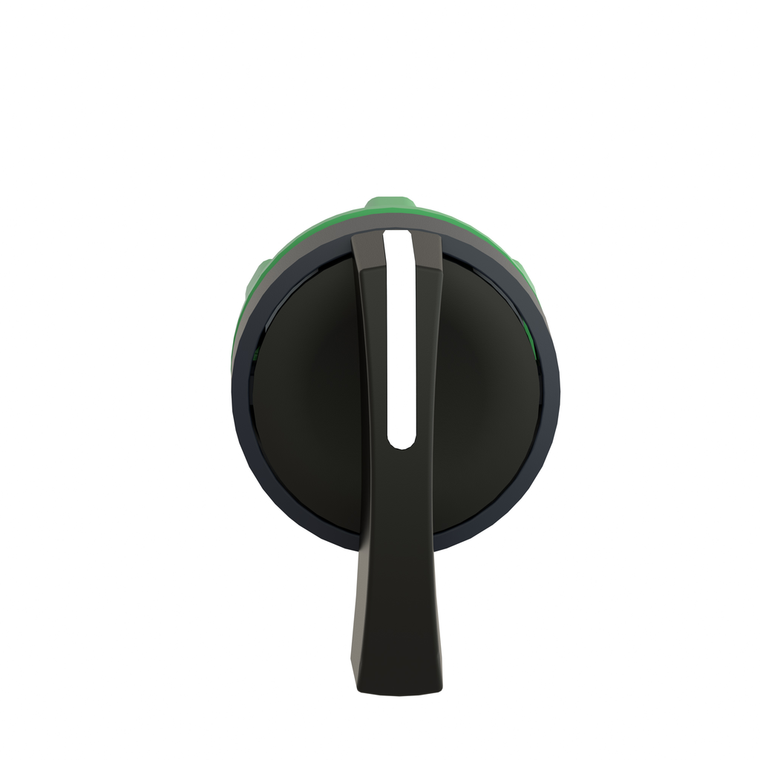

Schneider Electric ZB5AJ5 Selector Operating Head
This Harmony XB5, black head with long handle for selector switch has 3 positions, operates with spring return to center mechanism. This switch head with long handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Environmental Disclosure:
- ENVPEP1710010EN
- Toxic Heavy Metal Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sustainable Offer Status:
- Green Premium product
- Type Of Operator:
- to centre spring return
- Overvoltage Category:
- class II IEC 60536
- Sale Per Indivisible Quantity:
- 1
- Cad Overall Depth:
- 46 mm
- Mechanical Durability:
- 1000000 cycles
- Protective Treatment:
- TH
- Cad Overall Width:
- 29 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- China Rohs Regulation:
- X
- Reach Free Of Svhc:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Operator Additional Information:
- non padlockable
- Device Presentation:
- basic element
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 IEC 60529 || IP69K
- Operator Position Information:
- 3 positions +/- 45°
- Head Type:
- standard
- Mercury Free:
- Yes
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Certifications:
- CSA || DNV || BV || GL || LROS (Lloyds register of shipping) || UL Listed
- Product Or Component Type:
- head for selector switch
- Range Of Product:
- Harmony XB5
- Standards:
- CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-4 || UL 508 || IEC 60947-5-1 || JIS C8201-1
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Device Short Name:
- ZB5
- Shape Of Signaling Unit Head:
- round
- Cad Overall Height:
- 38 mm
- Net Weight:
- 0.017 kg
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Bezel Material:
- dark grey plastic
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Ik Degree Of Protection:
- IK06 IEC 50102
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Mounting Diameter:
- 22 mm
- Operator Profile:
- black long handle
- Circularity Profile:
- ENVEOLI1710010EN
- Datasheet:
- View
