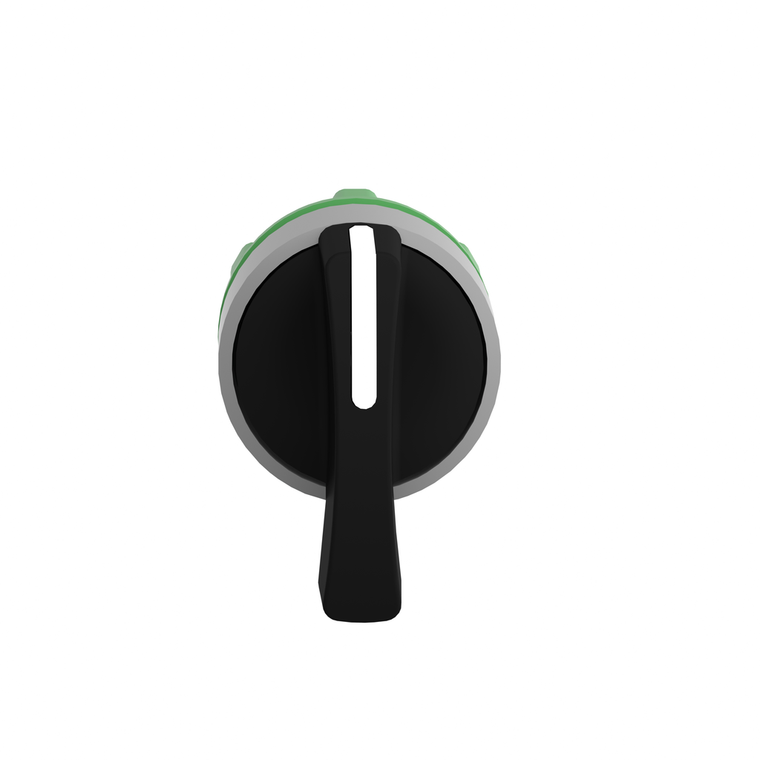

Schneider Electric ZB5AJ8C0 Selector Operating Head
Schneider Electric
$25.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This switch head with long handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Cad Overall Width:
- 29 mm
- Mercury Free:
- Yes
- Net Weight:
- 0.017 kg
- Head Type:
- standard
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Bezel Material:
- plastic colour plated grey
- Ik Degree Of Protection:
- IK06 IEC 50102
- Toxic Heavy Metal Free:
- Yes
- Shape Of Signaling Unit Head:
- round
- Device Presentation:
- basic element
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- China Rohs Regulation:
- X
- Rohs Exemption Information:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Device Short Name:
- ZB5
- Ip Degree Of Protection:
- IP67 IEC 60529
- Operator Profile:
- black long handle
- Cad Overall Height:
- 38 mm
- Mounting Diameter:
- 22 mm
- Type Of Operator:
- right to centre spring return
- Operator Position Information:
- 3 positions +/- 45°
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Standards:
- IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operator Additional Information:
- non padlockable
- Range Of Product:
- Harmony XB5
- Overvoltage Category:
- class II IEC 60536
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ambient Air Temperature For Storage:
- -40-70 °C
- Protective Treatment:
- TH
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Depth:
- 46 mm
- Product Or Component Type:
- head for selector switch
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Reach Free Of Svhc:
- Yes
- Mechanical Durability:
- 1000000 cycles
- Product Certifications:
- BV || GL || UL Listed || LROS (Lloyds register of shipping) || CSA || DNV
