Schneider Electric ZB5AK1263C0 Selector Ill. Pushbotton
Schneider Electric
$37.82
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

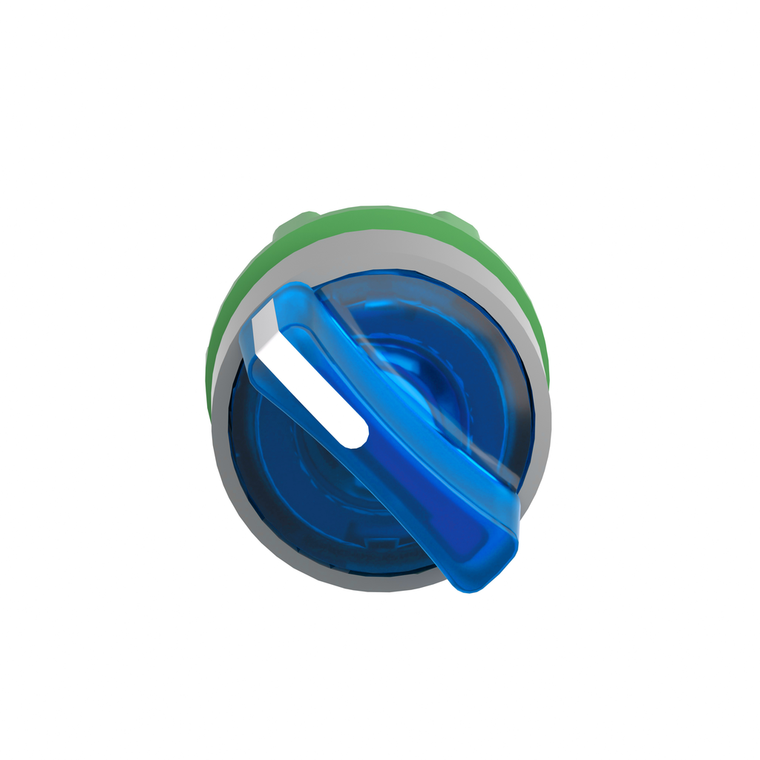

Schneider Electric ZB5AK1263C0 Selector Ill. Pushbotton
This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Cad Overall Height:
- 29 mm
- Operator Position Information:
- 2 positions 90°
- Protective Treatment:
- TH
- Bezel Material:
- plastic colour plated grey
- Shape Of Signaling Unit Head:
- round
- Type Of Operator:
- stay put
- Standards:
- EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || JIS C8201-1
- Range Of Product:
- Harmony XB5
- Toxic Heavy Metal Free:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free:
- Yes
- Device Presentation:
- basic element
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d
- Mechanical Durability:
- 1000000 cycles
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Rohs Exemption Information:
- Yes
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Sale Per Indivisible Quantity:
- 1
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Head Type:
- standard
- Net Weight:
- 0.016 kg
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Product Or Component Type:
- head for illuminated selector switch
- Overvoltage Category:
- class II IEC 60536
- Ambient Air Temperature For Storage:
- -40-70 °C
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Reach Free Of Svhc:
- Yes
- Operator Profile:
- blue standard handle
- Cad Overall Width:
- 29 mm
- Mounting Diameter:
- 22 mm
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- China Rohs Regulation:
- X
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Compatibility:
- universal LED
- Ambient Air Temperature For Operation:
- -40-70 °C
- Product Certifications:
- CSA || LROS (Lloyds register of shipping) || UL Listed || GL || BV || DNV
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ik Degree Of Protection:
- IK04 IEC 50102
- Device Short Name:
- ZB5
- Cad Overall Depth:
- 43 mm
- Datasheet:
- View
