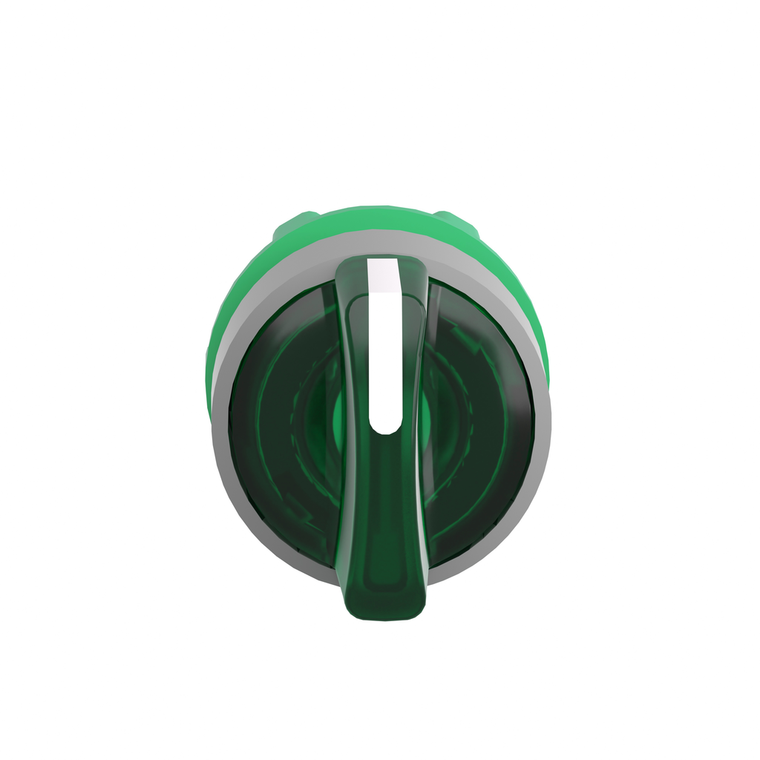

Schneider Electric ZB5AK1733C0 Selector Ill. Pushbotton

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AK1733C0 Selector Ill. Pushbotton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AK1733C0

UPC:

3606489767686

MPN:

Condition:

New

Mounting Diameter:

22 mm

Product Certifications:

BV || CSA || UL Listed || GL || DNV || LROS (Lloyds register of shipping)

Head Type:

standard

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Electrical Composition Code:

M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Net Weight:

0.016 kg

Ambient Air Temperature For Storage:

-40-70 °C

Mercury Free:

Yes

Toxic Heavy Metal Free:

Yes

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Protective Treatment:

TH

Standards:

EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || JIS C8201-1

Ik Degree Of Protection:

IK04 IEC 50102

Cad Overall Width:

29 mm

Shape Of Signaling Unit Head:

round

Device Short Name:

ZB5

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Sale Per Indivisible Quantity:

1

China Rohs Regulation:

X

Type Of Operator:

left to centre spring return

Product Compatibility:

universal LED

Range Of Product:

Harmony XB5

Operator Position Information:

3 positions +/- 45°

Ambient Air Temperature For Operation:

-40-70 °C

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Mechanical Durability:

500000 cycles

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Overvoltage Category:

class II IEC 60536

Bezel Material:

plastic colour plated grey

Reach Free Of Svhc:

Yes

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Cad Overall Height:

29 mm

Cad Overall Depth:

43 mm

Rohs Exemption Information:

Yes

Operator Profile:

green standard handle

Device Presentation:

basic element

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Product Or Component Type:

head for illuminated selector switch

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Datasheet:

View
