Schneider Electric ZB5AK1813 Selector Ill. Pushbotton
Schneider Electric
$76.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AK1813 Selector Ill. Pushbotton

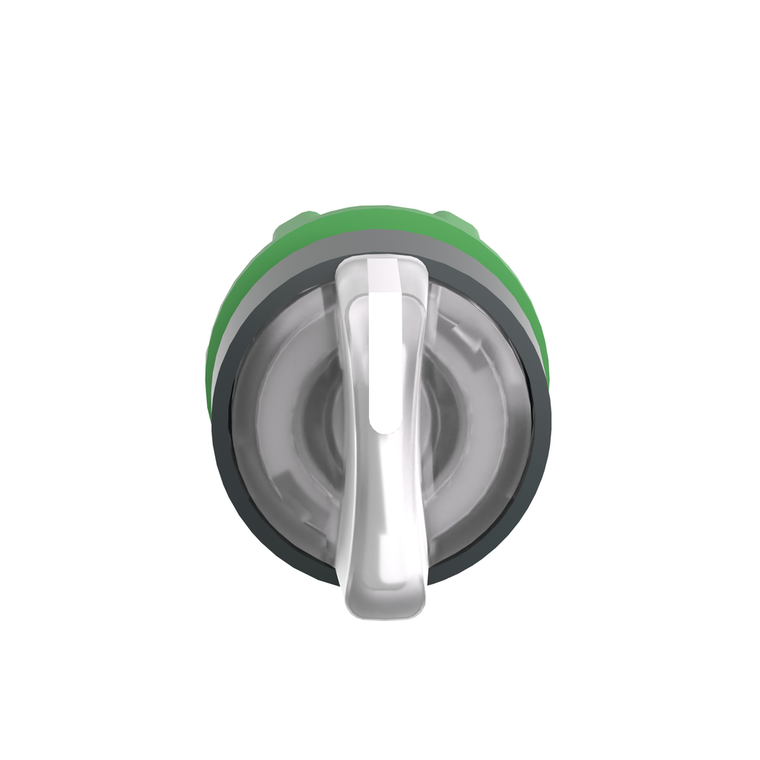

This white illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms. It offers a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.
- Warranty:
- 18 months
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Operation:
- -40-70 °C
- Bezel Material:
- dark grey plastic
- China Rohs Regulation:
- X
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc:
- Yes
- Environmental Disclosure:
- ENVPEP1710010EN
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Range Of Product:
- Harmony XB5
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Operator Profile:
- white standard handle
- Type Of Operator:
- right to centre spring return
- Cad Overall Height:
- 29 mm
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Sale Per Indivisible Quantity:
- 1
- Mounting Diameter:
- 22 mm
- Sustainable Offer Status:
- Green Premium product
- Device Short Name:
- ZB5
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Head Type:
- standard
- Overvoltage Category:
- class II IEC 60536
- Protective Treatment:
- TH
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Operator Position Information:
- 3 positions +/- 45°
- Shape Of Signaling Unit Head:
- round
- Standards:
- UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || JIS C8201-1
- Mechanical Durability:
- 500000 cycles
- Cad Overall Width:
- 29 mm
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Depth:
- 43 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Circularity Profile:
- ENVEOLI1710010EN
- Product Compatibility:
- universal LED
- Toxic Heavy Metal Free:
- Yes
- Device Presentation:
- basic element
- Product Or Component Type:
- head for illuminated selector switch
- Product Certifications:
- BV || UL Listed || DNV || LROS (Lloyds register of shipping) || CSA || GL
- Ik Degree Of Protection:
- IK04 IEC 50102
- Net Weight:
- 0.016 kg
