Schneider Electric ZB5AS834 Emergency Stop Op. Head

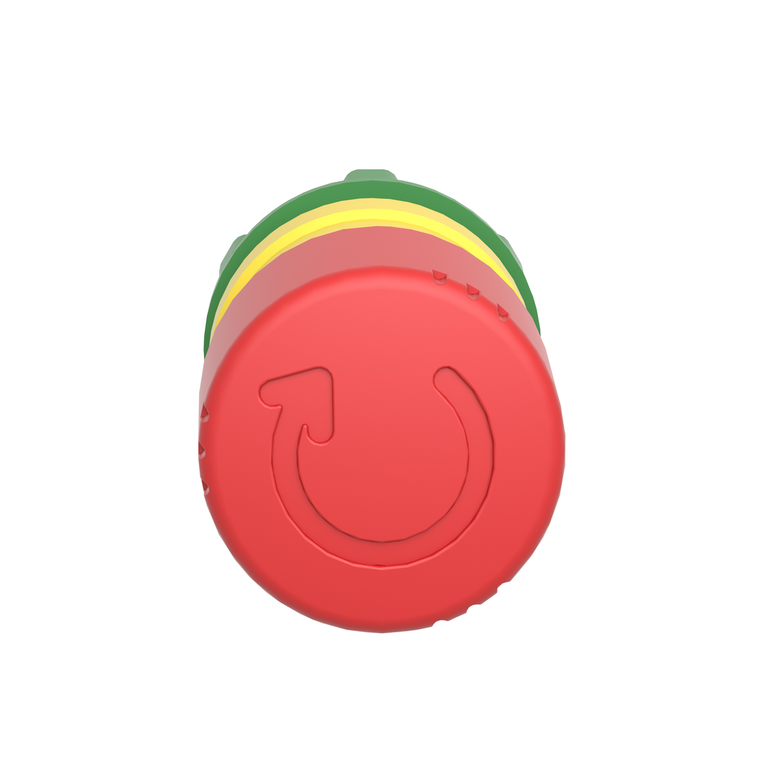

This Harmony XB5, emergency stop / shutdown 30mm mushroom red button head operates with a latched turn to release mechanism. This emergency stop / shutdown button head also called EMS (Emergency Machine Stop) and EMO (Emergency Off) provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off pushbuttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 30mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Station Name:
- XALD 1...5 cut-outs || XALK 1...5 cut-outs
- Type Of Operator:
- trigger action and mechanical latching
- Ik Degree Of Protection:
- IK03 IEC 50102
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Height:
- 30 mm
- Reset:
- turn to release
- Product Or Component Type:
- head for emergency stop push-button
- Standards:
- IEC 60364-5-53 || IEC 60947-5-5 || GB 14048.5 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-1 || ISO 13850 || UL 508 || IEC 60204-1 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Electrical Composition Code:
- C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C10 4 single and double front mounting
- Rohs Exemption Information:
- Yes
- Product Destination:
- emergency stop push-button
- Net Weight:
- 0.042 kg
- Circularity Profile:
- ENVEOLI1710010EN
- Range Of Product:
- Harmony XB5
- Cad Overall Depth:
- 57 mm
- Product Certifications:
- CSA || GL || BV || LROS (Lloyds register of shipping) || DNV || UL Listed
- Overvoltage Category:
- class II IEC 60536
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Head Type:
- standard
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shape Of Signaling Unit Head:
- round
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Device Short Name:
- ZB5
- Bezel Material:
- dark grey plastic
- Protective Treatment:
- TH
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- China Rohs Regulation:
- X
- Mercury Free:
- Yes
- Cad Overall Width:
- 30 mm
- Reach Free Of Svhc:
- Yes
- Warranty:
- 18 months
- Compatibility Code:
- ZB5
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Sale Per Indivisible Quantity:
- 1
- Environmental Disclosure:
- ENVPEP1710010EN
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Toxic Heavy Metal Free:
- Yes
- Mounting Diameter:
- 22 mm
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mechanical Durability:
- 300000 cycles
- Ambient Air Temperature For Storage:
- -40-70 °C
- Operator Profile:
- red mushroom à 30 mm, unmarked
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Device Presentation:
- basic element
