Schneider Electric ZB5AS964 Emergency Stop Op. Head
Schneider Electric
$112.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AS964 Emergency Stop Op. Head

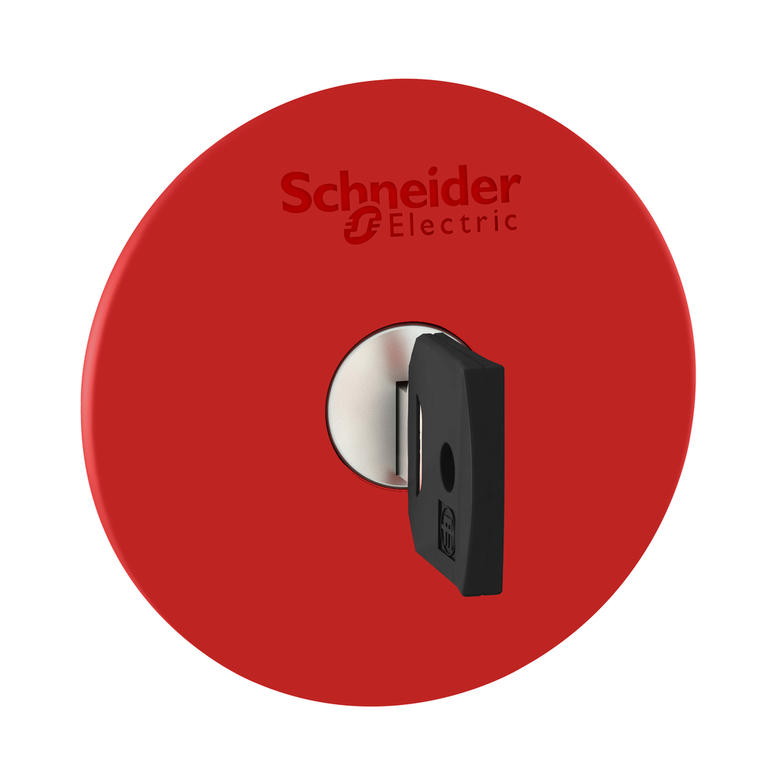

This Harmony XB5 emergency stop / shutdown 60mm mushroom red button head operates with a latched key release (key no.455) mechanism. It provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off push buttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 60mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Product Destination:
- emergency stop push-button
- Mounting Diameter:
- 22 mm
- Operator Profile:
- red mushroom à 60 mm, unmarked
- Net Weight:
- 0.092 kg
- Shape Of Signaling Unit Head:
- round
- Device Presentation:
- basic element
- Warranty:
- 18 months
- Type Of Operator:
- trigger action and mechanical latching
- Rohs Exemption Information:
- Yes
- Type Of Keylock:
- key 455
- Sale Per Indivisible Quantity:
- 1
- Cad Overall Depth:
- 79 mm
- Station Name:
- XALD 1 cut-out || XALK 1 cut-out
- Compatibility Code:
- ZB5
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Overvoltage Category:
- class II IEC 60536
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Mercury Free:
- Yes
- Standards:
- EN/ISO 13850 || IEC 60364-5-53 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || UL 508 || EN/IEC 60204-1 || GB 14048.5 || EN/IEC 60947-1 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || JIS C8201-1
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Operation:
- -40-70 °C
- China Rohs Regulation:
- X
- Device Short Name:
- ZB5
- Cad Overall Height:
- 60 mm
- Key Withdrawal Position:
- center
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Product Or Component Type:
- head for emergency stop push-button
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Reset:
- key release
- Ik Degree Of Protection:
- IK03 IEC 50102
- Environmental Disclosure:
- ENVPEP1710010EN
- Cad Overall Width:
- 60 mm
- Protective Treatment:
- TH
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Head Type:
- standard
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Range Of Product:
- Harmony XB5
- Product Certifications:
- UL Listed || DNV || GL || BV || LROS (Lloyds register of shipping) || CSA
- Bezel Material:
- dark grey plastic
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Storage:
- -40-70 °C
- Electrical Composition Code:
- C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C10 4 single and double front mounting
- Circularity Profile:
- ENVEOLI1710010EN
- Mechanical Durability:
- 300000 cycles
