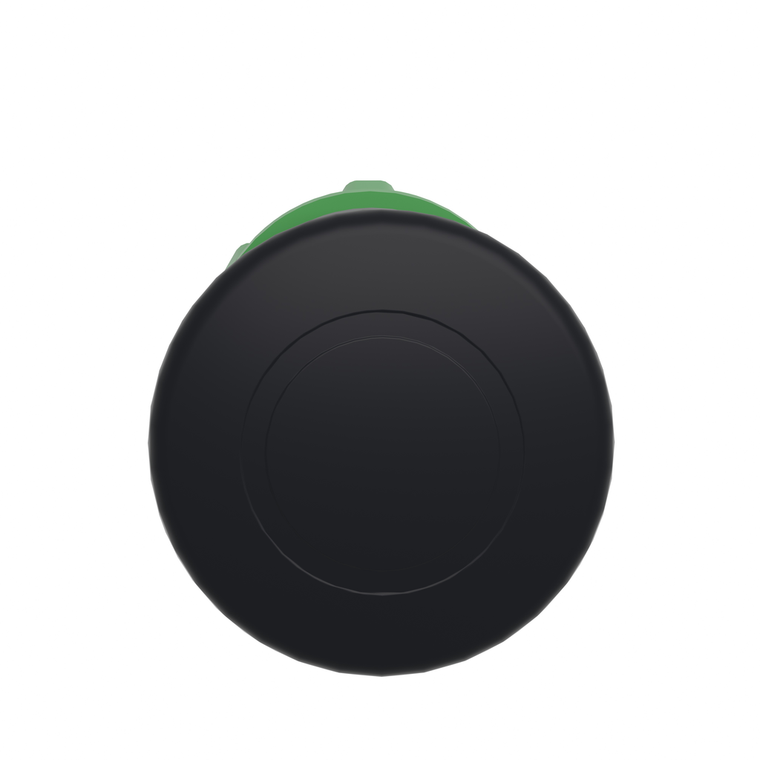

Schneider Electric ZB5AT2 Black Mushroom Latching Head Push-Pull 4
Schneider Electric
$40.40
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AT2 Black Mushroom Latching Head Push-Pull 4
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB5 40mm mushroom is black, operates with latched push-pull mechanism. It provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Ambient Air Temperature For Operation:
- -40-70 °C
- Overvoltage Category:
- class II IEC 60536
- Compatibility Code:
- ZB5
- Station Name:
- XALD 1 cut-out || XALK 1 cut-out
- Net Weight:
- 0.049 kg
- Standards:
- IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || JIS C8201-5-1 || JIS C8201-1
- Electrical Composition Code:
- C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C7 4 single front mounting || C8 4 single and double front mounting || C10 4 single and double front mounting
- Head Type:
- standard
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Device Presentation:
- basic element
- Ambient Air Temperature For Storage:
- -40-70 °C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Bezel Material:
- dark grey plastic
- Mercury Free:
- Yes
- Cad Overall Height:
- 40 mm
- Operator Profile:
- black mushroom à 40 mm, unmarked
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Certifications:
- BV || CSA || GL || UL Listed || LROS (Lloyds register of shipping) || DNV
- Toxic Heavy Metal Free:
- Yes
- Mechanical Durability:
- 500000 cycles
- Cad Overall Depth:
- 56 mm
- China Rohs Regulation:
- X
- Sustainable Offer Status:
- Green Premium product
- Shape Of Signaling Unit Head:
- round
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Cad Overall Width:
- 40 mm
- Ik Degree Of Protection:
- IK03 IEC 50102
- Environmental Disclosure:
- ENVPEP1710010EN
- Warranty:
- 18 months
- Type Of Operator:
- latching
- Circularity Profile:
- ENVEOLI1710010EN
- Reach Free Of Svhc:
- Yes
- Device Short Name:
- ZB5
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Range Of Product:
- Harmony XB5
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Product Or Component Type:
- head for non-illuminated push-button
- Rohs Exemption Information:
- Yes
- Protective Treatment:
- TH
- Reset:
- push-pull
- Mounting Diameter:
- 22 mm
- Sale Per Indivisible Quantity:
- 1
