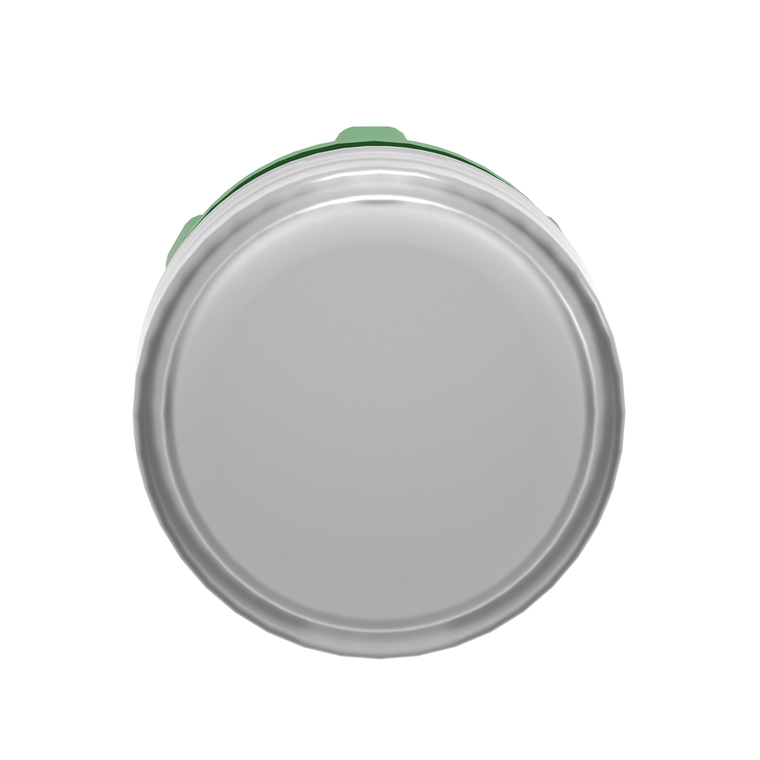

Schneider Electric ZB5AV013 Pilot Light Head
Schneider Electric
$7.60
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB5, plain lens head for pilot light with universal LED is white. This head for universal LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Rohs Exemption Information:
- Yes
- Cad Overall Depth:
- 31 mm
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Cad Overall Height:
- 29 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Storage:
- -40-70 °C
- Environmental Disclosure:
- ENVPEP1710010EN
- Toxic Heavy Metal Free:
- Yes
- Device Presentation:
- basic element
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
- Head Type:
- standard
- Range Of Product:
- Harmony XB5
- Operator Additional Information:
- with plain lens
- Bezel Material:
- dark grey plastic
- Cap/Operator Or Lens Colour:
- white
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Standards:
- IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || JIS C8201-1
- Overvoltage Category:
- class II IEC 60536
- Warranty:
- 18 months
- Product Compatibility:
- universal LED
- Circularity Profile:
- ENVEOLI1710010EN
- China Rohs Regulation:
- X
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Protective Treatment:
- TH
- Electrical Composition Code:
- P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED || PR1 rear mounting integral LED
- Sustainable Offer Status:
- Green Premium product
- Shape Of Signaling Unit Head:
- round
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mounting Diameter:
- 22 mm
- Mercury Free:
- Yes
- Ik Degree Of Protection:
- IK05 IEC 50102
- Device Short Name:
- ZB5
- Net Weight:
- 0.017 kg
- Reach Free Of Svhc:
- Yes
- Cad Overall Width:
- 29 mm
- Product Or Component Type:
- head for pilot light
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Sale Per Indivisible Quantity:
- 1
