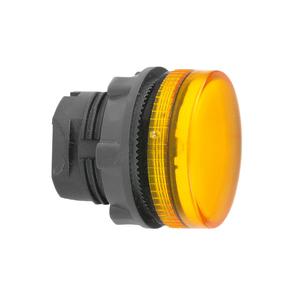

Schneider Electric ZB5AV05 Pilot Light Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AV05 Pilot Light Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AV05

UPC:

3389110908114

MPN:

Condition:

New

Head Type:

standard

Rohs Exemption Information:

Yes

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Warranty:

18 months

Cad Overall Width:

29 mm

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653

China Rohs Regulation:

X

Sustainable Offer Status:

Green Premium product

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Electrical Composition Code:

P3 front mounting BA 9s || P4 front mounting BA 9s and transformer || PF2 front mounting BA 9s

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Device Short Name:

ZB5

Range Of Product:

Harmony XB5

Ambient Air Temperature For Operation:

-40-70 °C

Protective Treatment:

TH

Product Compatibility:

BA 9s

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Circularity Profile:

ENVEOLI1710010EN

Net Weight:

0.018 kg

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ambient Air Temperature For Storage:

-40-70 °C

Overvoltage Category:

class II IEC 60536

Device Presentation:

basic element

Bezel Material:

dark grey plastic

Cad Overall Height:

29 mm

Environmental Disclosure:

ENVPEP1710010EN

Cad Overall Depth:

31 mm

Ik Degree Of Protection:

IK05 IEC 50102

Shape Of Signaling Unit Head:

round

Mercury Free:

Yes

Sale Per Indivisible Quantity:

1

Mounting Diameter:

22 mm

Product Or Component Type:

head for pilot light

Standards:

IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-5 || UL 508 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-1

Reach Free Of Svhc:

Yes

Cap/Operator Or Lens Colour:

yellow

Operator Additional Information:

with plain lens

Toxic Heavy Metal Free:

Yes
