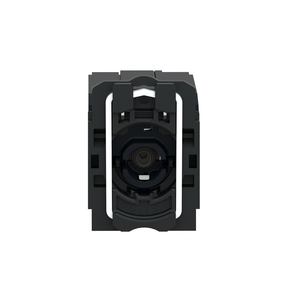

Schneider Electric ZB5AV4 230V Transfo Pilot Light
Schneider Electric
$98.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
- Product Or Component Type:
- complete body/light block assembly
- Cad Overall Height:
- 42 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Product Certifications:
- UL Listed || BV || CSA || LROS (Lloyds register of shipping) || GL || DNV
- Terminals Description Iso N°1:
- (X1-X2)PL
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Electrical Composition Code:
- P4 || M9
- Light Block Supply:
- via integral transformer 1.2 VA 6 V
- [Us] Rated Supply Voltage:
- 230...240 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Protective Treatment:
- TH
- Circularity Profile:
- ENVEOLI1710010EN
- Fixing Collar Material:
- plastic
- Light Source:
- incandescent
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Range Of Product:
- Harmony XB5
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Sale Per Indivisible Quantity:
- 1
- Environmental Disclosure:
- ENVPEP1710010EN
- Warranty:
- 18 months
- Standards:
- UL 508 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-1
- Signalling Type:
- steady
- Bulb Base:
- BA 9s
- Cad Overall Width:
- 30 mm
- Device Presentation:
- basic sub-assemblies
- Net Weight:
- 0.099 kg
- Device Short Name:
- ZB5
- Cad Overall Depth:
- 55 mm
- Ambient Air Temperature For Operation:
- -40-55 °C
- Electrical Shock Protection Class:
- class II IEC 60536
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- X
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Mounting Of Block:
- front mounting
