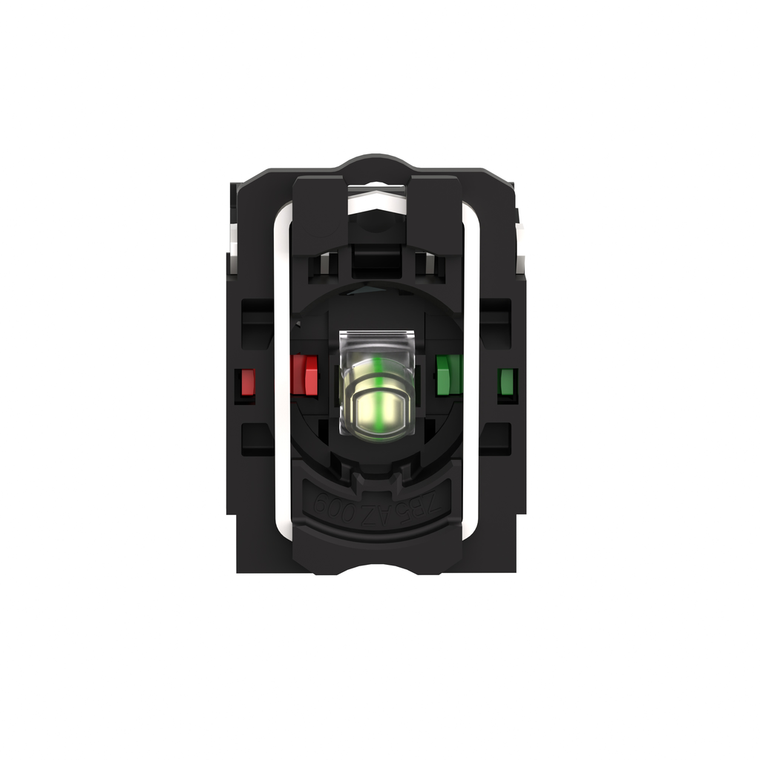

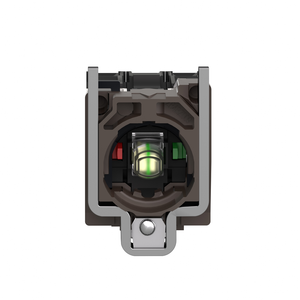

Schneider Electric ZB5AW0B15 24 V Led Illumi. P.B Bod

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AW0B15 24 V Led Illumi. P.B Bod

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AW0B15

UPC:

3389110908398

MPN:

Condition:

New

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Supply Voltage Limits:

19.2-30 V DC || 21.6-26.4 V AC

Operating Torque:

0.05 N.m NO changing electrical state

Contact Operation:

slow-break

Mercury Free:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Rohs Exemption Information:

Yes

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Bulb Base:

integral LED

Sale Per Indivisible Quantity:

1

Light Source Colour:

white

Standards:

JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-4 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

Contacts Usage:

standard

Cad Overall Depth:

32 mm

Positive Opening:

with IEC 60947-5-1 appendix K

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Range Of Product:

Harmony XB5

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Signalling Type:

steady

Protective Treatment:

TH

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Electrical Shock Protection Class:

class II IEC 60536

China Rohs Regulation:

X

Ambient Air Temperature For Operation:

-40-70 °C

Device Short Name:

ZB5

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Cad Overall Width:

30 mm

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Surge Withstand:

1 kV IEC 61000-4-5

Environmental Disclosure:

ENVPEP1710010EN

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Mechanical Durability:

5000000 cycles

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Net Weight:

0.042 kg

Contacts Type And Composition:

1 NO + 1 NC

Current Consumption:

18 mA

Product Or Component Type:

complete body/contact assembly and light block

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Warranty:

18 months

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Device Presentation:

basic sub-assemblies

Contacts Material:

silver alloy (Ag/Ni)

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Head Type:

standard

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Service Life:

100000 h at rated voltage and 25 °C

Light Block Supply:

direct

Electromagnetic Emission:

class B IEC 55011

Sustainable Offer Status:

Green Premium product

Product Certifications:

CSA || LROS (Lloyds register of shipping) || UL Listed || BV || GL || DNV

Cad Overall Height:

42 mm

Operating Force:

2 N NC changing electrical state || 2.3 N NO changing electrical state

Light Source:

universal LED

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Fixing Collar Material:

plastic

Circularity Profile:

ENVEOLI1710010EN

Terminals Description Iso N°1:

(13-14)NO || (11-12)NC

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
