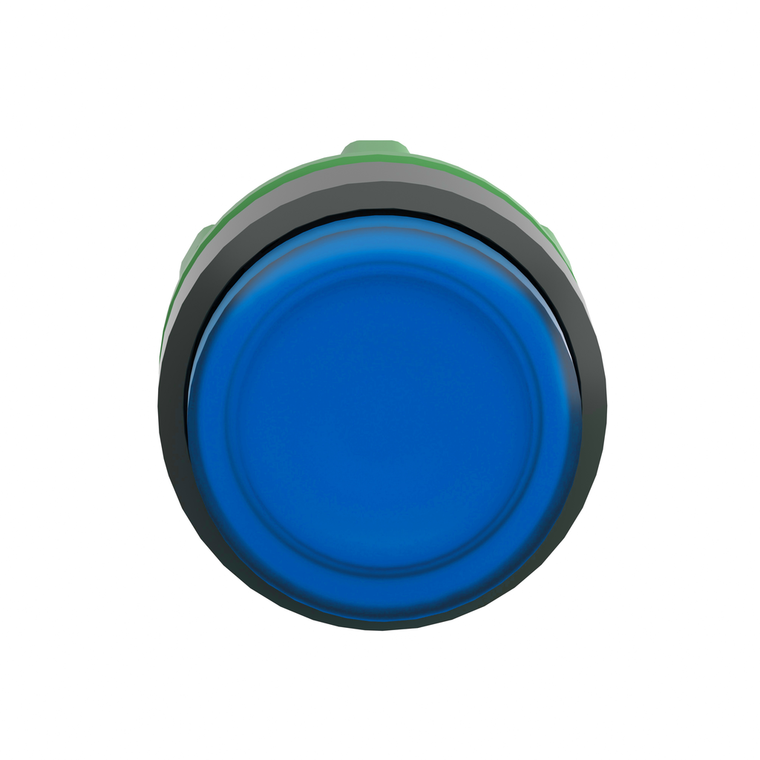

Schneider Electric ZB5AW163 Illuminated Pushbutton He
Schneider Electric
$13.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This blue projecting illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is also distinguishable by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Mechanical Durability:
- 10000000 cycles
- Ambient Air Temperature For Operation:
- -40-70 °C
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- China Rohs Regulation:
- X
- Ik Degree Of Protection:
- IK05 EN 50102
- Group Of Product:
- proj push integral LED
- Net Weight:
- 0.018 kg
- Range Of Product:
- Harmony XB5
- Main Group:
- illum push-button
- Operator Profile:
- blue projecting, unmarked
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69 || IP69K
- Ambient Air Temperature For Storage:
- -40-70 °C
- Bezel Material:
- dark grey plastic
- Cad Overall Width:
- 29 mm
- Sustainable Offer Status:
- Green Premium product
- Standards:
- UL 508 || JIS C8201-5-1 || GB 14048.5 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C8201-1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Cap/Operator Or Lens Colour:
- blue
- Product Compatibility:
- universal LED
- Product Certifications:
- BV || LROS (Lloyds register of shipping) || UL Listed || DNV || GL || CSA
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cad Overall Depth:
- 33 mm
- Shape Of Signaling Unit Head:
- round
- Device Short Name:
- ZB5
- Cad Overall Height:
- 29 mm
- Head Type:
- standard
- Device Presentation:
- basic sub-assemblies
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Overvoltage Category:
- class II IEC 60536
- Sale Per Indivisible Quantity:
- 1
- Rohs Exemption Information:
- Yes
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Marking:
- unmarked
- Type Of Operator:
- spring return
- Mounting Diameter:
- 22 mm
- Warranty:
- 18 months
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Operator Additional Information:
- with plain lens
- Product Or Component Type:
- head for illuminated push-button
- Protective Treatment:
- TC
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2
- Circularity Profile:
- ENVEOLI1710010EN
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Environmental Disclosure:
- ENVPEP1710010EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
