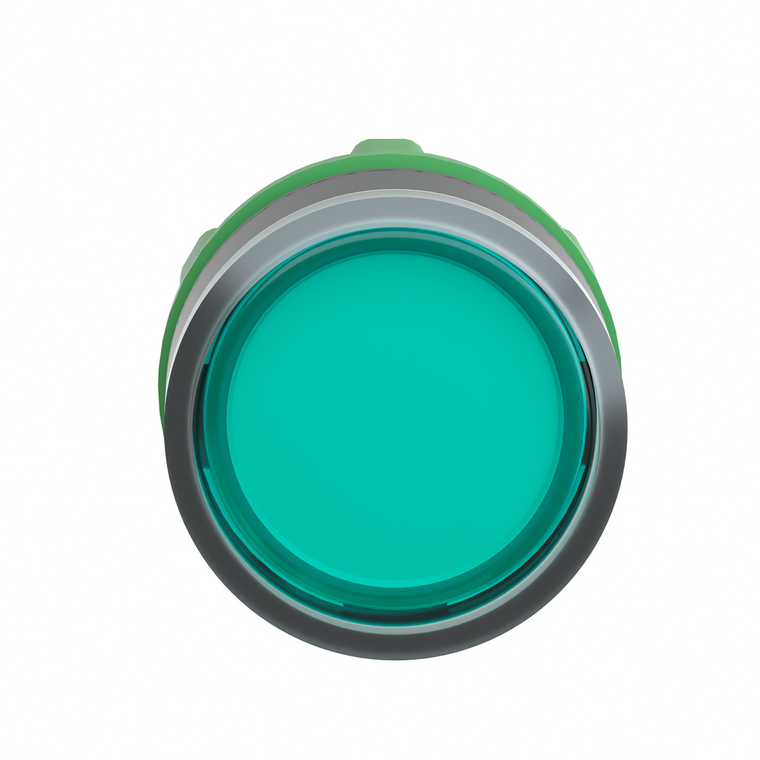

Schneider Electric ZB5AW33 Illuminated Pushbutton He
Schneider Electric
$18.60
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB5, plain lens illuminated green flush head operates with a spring return / impulse mechanism. This illuminated button head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ik Degree Of Protection:
- IK05 IEC 62262
- Operator Additional Information:
- with plain lens
- Product Compatibility:
- BA 9s
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Environmental Disclosure:
- ENVPEP1710010EN
- Device Presentation:
- basic sub-assemblies
- Electrical Composition Code:
- M7 6 single front mounting BA 9s || M8 6 single and double front mounting BA 9s || M9 2 single front mounting BA 9s and transformer || MF2 2 single front mounting BA 9s
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Range Of Product:
- Harmony XB5
- Marking:
- unmarked
- Bezel Material:
- dark grey plastic
- Head Type:
- standard
- Sale Per Indivisible Quantity:
- 1
- Standards:
- IEC 60947-5-4 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || GB 14048.5 || JIS C8201-5-1 || UL 508 || JIS C8201-1
- Overvoltage Category:
- class II IEC 60536
- Device Short Name:
- ZB5
- Main Group:
- illum push-button
- Net Weight:
- 0.018 kg
- Type Of Operator:
- spring return
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Circularity Profile:
- ENVEOLI1710010EN
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Height:
- 29 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cad Overall Width:
- 29 mm
- Mounting Diameter:
- 22 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Product Certifications:
- GL || DNV || LROS (Lloyds register of shipping) || CSA || BV || UL Listed
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Or Component Type:
- head for illuminated push-button
- Group Of Product:
- flush push BA9s
- Rohs Exemption Information:
- Yes
- Mechanical Durability:
- 10000000 cycles
- Shape Of Signaling Unit Head:
- round
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cap/Operator Or Lens Colour:
- green
- China Rohs Regulation:
- X
- Cad Overall Depth:
- 32 mm
- Mercury Free:
- Yes
- Operator Profile:
- green flush, unmarked
- Ambient Air Temperature For Operation:
- -40-55 °C
- Warranty:
- 18 months
- Protective Treatment:
- TC
