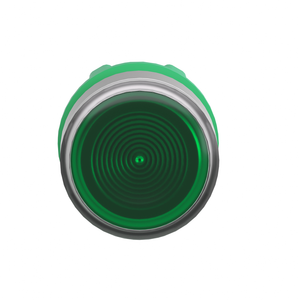

Schneider Electric ZB5AW333C0 Green Flush Illum Pb Head For Int Led
Schneider Electric
$17.31
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AW333C0 Green Flush Illum Pb Head For Int Led
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
- Rohs Exemption Information:
- Yes
- Cad Overall Depth:
- 30 mm
- China Rohs Regulation:
- X
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Width:
- 29 mm
- Head Type:
- standard
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Or Component Type:
- head for illuminated push-button
- Main Group:
- illum push-button
- Ik Degree Of Protection:
- IK05 EN 50102
- Ambient Air Temperature For Operation:
- -40-70 °C
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Net Weight:
- 0.017 kg
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Compatibility:
- universal LED
- Operator Additional Information:
- with plain lens
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Marking:
- unmarked
- Mercury Free:
- Yes
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2
- Device Short Name:
- ZB5
- Overvoltage Category:
- class II IEC 60536
- Bezel Material:
- plastic colour plated grey
- Range Of Product:
- Harmony XB5
- Operator Profile:
- green flush, unmarked
- Device Presentation:
- basic sub-assemblies
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Shape Of Signaling Unit Head:
- round
- Product Certifications:
- GL || DNV || LROS (Lloyds register of shipping) || BV || CSA || UL Listed
- Mechanical Durability:
- 10000000 cycles
- Group Of Product:
- flush push integral LED
- Type Of Operator:
- spring return
- Cap/Operator Or Lens Colour:
- green
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Reach Free Of Svhc:
- Yes
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Standards:
- EN/IEC 60947-5-4 || JIS C8201-5-1 || GB 14048.5 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Toxic Heavy Metal Free:
- Yes
- Protective Treatment:
- TC
- Mounting Diameter:
- 22 mm
- Cad Overall Height:
- 29 mm
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Sale Per Indivisible Quantity:
- 1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Datasheet:
- View
