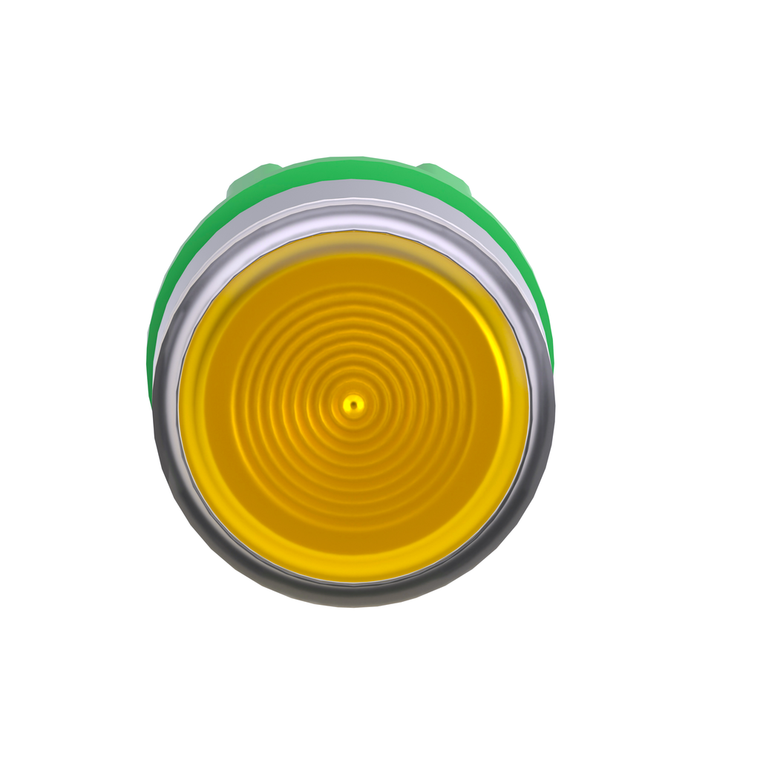

Schneider Electric ZB5AW383SC0 Yellow Flush Illum Pb Head For Int Led
Schneider Electric
$18.85
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AW383SC0 Yellow Flush Illum Pb Head For Int Led
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
- Bezel Material:
- plastic colour plated grey
- Reach Free Of Svhc:
- Yes
- Protective Treatment:
- TC
- Marking:
- unmarked
- Cad Overall Width:
- 29 mm
- Product Certifications:
- CSA || DNV || LROS (Lloyds register of shipping) || GL || UL Listed || BV
- Device Short Name:
- ZB5
- China Rohs Regulation:
- X
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Net Weight:
- 0.017 kg
- Operator Additional Information:
- with grooved lens
- Product Compatibility:
- universal LED
- Type Of Operator:
- spring return
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Cad Overall Depth:
- 30 mm
- Cap/Operator Or Lens Colour:
- yellow
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Main Group:
- illum push-button
- Toxic Heavy Metal Free:
- Yes
- Standards:
- EN/IEC 60947-5-1 || GB 14048.5 || UL 508 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-1
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Group Of Product:
- flush push integral LED
- Ambient Air Temperature For Storage:
- -40-70 °C
- Operator Profile:
- yellow flush, unmarked
- Product Or Component Type:
- head for illuminated push-button
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Mounting Diameter:
- 22 mm
- Device Presentation:
- basic sub-assemblies
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Environmental Characteristic:
- high ambient lighting environment
- Overvoltage Category:
- class II IEC 60536
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Ambient Air Temperature For Operation:
- -40-70 °C
- Shape Of Signaling Unit Head:
- round
- Ik Degree Of Protection:
- IK05 EN 50102
- Range Of Product:
- Harmony XB5
- Mechanical Durability:
- 10000000 cycles
- Cad Overall Height:
- 29 mm
- Sale Per Indivisible Quantity:
- 1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
