Schneider Electric

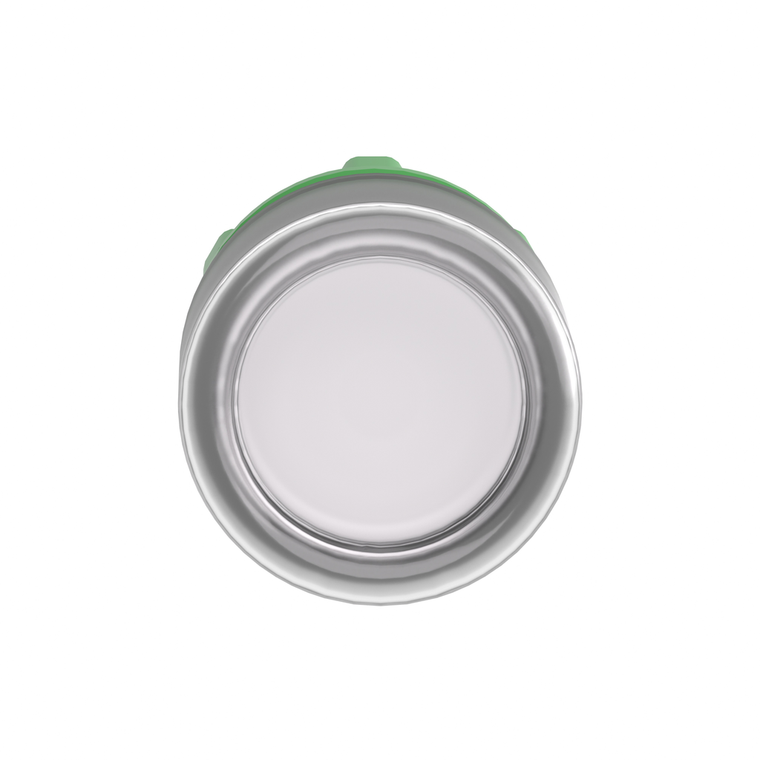

Schneider Electric ZB5AW513C0 White Illum Pb Head For Int Led Boote

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB5AW513C0 White Illum Pb Head For Int Led Boote

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AW513C0

UPC:

3606489770242

MPN:

Condition:

New

Net Weight:

0.019 kg

Operator Profile:

white flush, unmarked

Standards:

UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || GB 14048.5 || JIS C8201-5-1 || JIS C8201-1

Cap/Operator Or Lens Colour:

white

Protective Treatment:

TC

Head Type:

standard

Ambient Air Temperature For Storage:

-40-70 °C

Cad Overall Width:

30 mm

Electrical Composition Code:

M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2

Range Of Product:

Harmony XB5

Ik Degree Of Protection:

IK05 EN 50102

Marking:

unmarked

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Cad Overall Depth:

37 mm

Product Certifications:

GL || LROS (Lloyds register of shipping) || UL Listed || BV || CSA || DNV

Mechanical Durability:

10000000 cycles

Device Presentation:

basic sub-assemblies

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Sale Per Indivisible Quantity:

1

Main Group:

illum push-button

Product Or Component Type:

head for illuminated push-button

China Rohs Regulation:

X

Cad Overall Height:

30 mm

Rohs Exemption Information:

Yes

Ambient Air Temperature For Operation:

-40-70 °C

Toxic Heavy Metal Free:

Yes

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Overvoltage Category:

class II IEC 60536

Reach Free Of Svhc:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Device Short Name:

ZB5

Shape Of Signaling Unit Head:

round

Bezel Material:

plastic colour plated grey

Group Of Product:

flush push integral LED

Mercury Free:

Yes

Operator Additional Information:

clear boot

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Product Compatibility:

universal LED

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Type Of Operator:

spring return

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Mounting Diameter:

22 mm

Datasheet:

View
