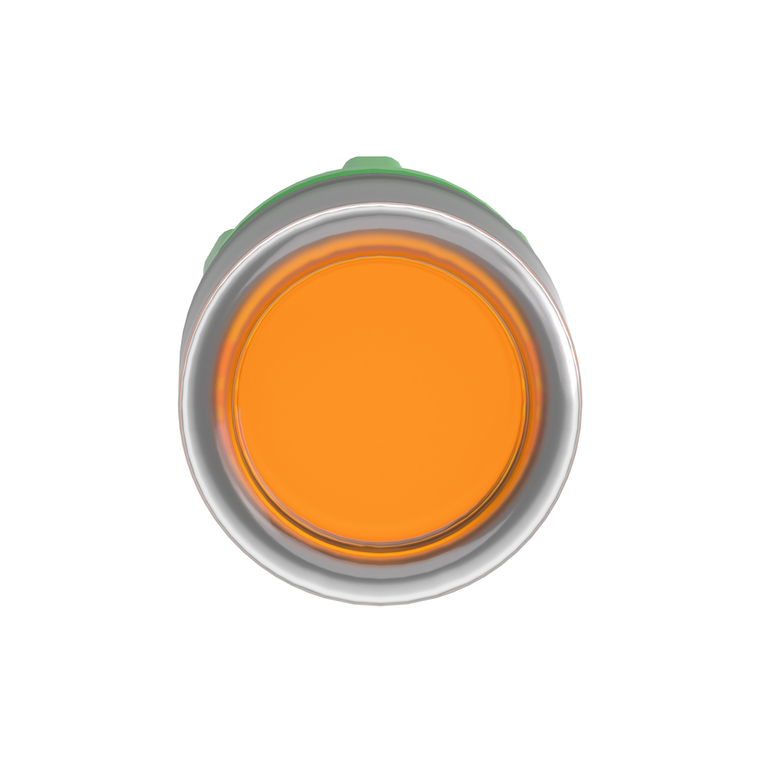

Schneider Electric ZB5AW553C0 Yellow Illum Pb Head For Int Led Boot

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AW553C0 Yellow Illum Pb Head For Int Led Boot

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AW553C0

UPC:

3606489770303

MPN:

Condition:

New

Device Presentation:

basic sub-assemblies

Range Of Product:

Harmony XB5

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Electrical Composition Code:

M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2

Mechanical Durability:

10000000 cycles

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Cad Overall Width:

30 mm

Marking:

unmarked

Cap/Operator Or Lens Colour:

orange

Ambient Air Temperature For Storage:

-40-70 °C

Bezel Material:

plastic colour plated grey

Group Of Product:

flush push integral LED

Main Group:

illum push-button

Product Certifications:

GL || DNV || UL Listed || LROS (Lloyds register of shipping) || CSA || BV

Cad Overall Height:

30 mm

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Sale Per Indivisible Quantity:

1

Protective Treatment:

TC

Standards:

UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || GB 14048.5 || JIS C8201-1

Net Weight:

0.019 kg

Device Short Name:

ZB5

Operator Additional Information:

clear boot

Cad Overall Depth:

37 mm

Shape Of Signaling Unit Head:

round

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic Heavy Metal Free:

Yes

Ambient Air Temperature For Operation:

-40-70 °C

Rohs Exemption Information:

Yes

Head Type:

standard

Operator Profile:

orange flush, unmarked

Overvoltage Category:

class II IEC 60536

Type Of Operator:

spring return

Reach Free Of Svhc:

Yes

Ik Degree Of Protection:

IK05 EN 50102

Product Or Component Type:

head for illuminated push-button

Product Compatibility:

universal LED

Mounting Diameter:

22 mm

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

China Rohs Regulation:

X

Mercury Free:

Yes
