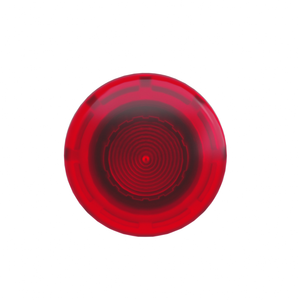

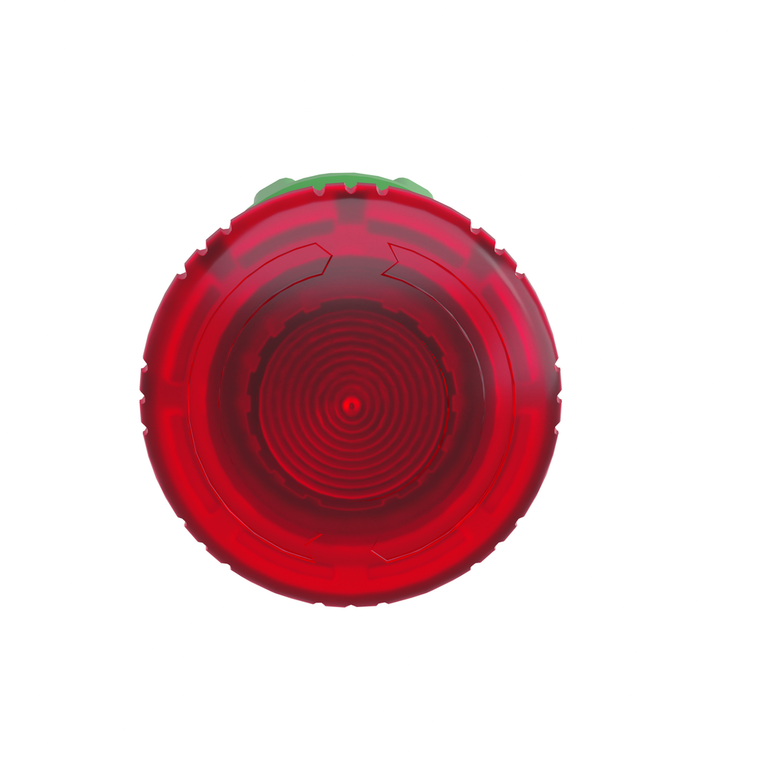

Schneider Electric ZB5AW743 Pushbutton Emergency Switching Off

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AW743 Pushbutton Emergency Switching Off

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AW743

UPC:

3389110666854

MPN:

Condition:

New

Standards:

IEC 60947-5-4 || IEC 60947-1 || GB 14048.5 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || UL 508 || JIS C8201-1

Circularity Profile:

ENVEOLI1710010EN

Overvoltage Category:

class II IEC 60536

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Ambient Air Temperature For Storage:

-40-70 °C

Mounting Diameter:

22 mm

Cad Overall Depth:

50 mm

Operator Profile:

red mushroom Ø 40 mm, unmarked

Head Type:

standard

Rohs Exemption Information:

Yes

Cad Overall Height:

40 mm

Ip Degree Of Protection:

IP66 IEC 60529 || IP69 || IP69K

Reset:

turn to release

Device Presentation:

basic sub-assemblies

Type Of Operator:

latching

Toxic Heavy Metal Free:

Yes

Range Of Product:

Harmony XB5

Shape Of Signaling Unit Head:

round

Protective Treatment:

TC

Cap/Operator Or Lens Colour:

red

Bezel Material:

dark grey plastic

Sale Per Indivisible Quantity:

1

Product Or Component Type:

head for illuminated emergency switching off push-button

Reach Free Of Svhc:

Yes

Station Name:

XALD 1 cut-out || XALK 1 cut-out

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Mercury Free:

Yes

Warranty:

18 months

Marking:

unmarked

Ambient Air Temperature For Operation:

-40-70 °C

Main Group:

switching off

Ik Degree Of Protection:

IK05 IEC 62262

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Sustainable Offer Status:

Green Premium product

Environmental Disclosure:

ENVPEP1710010EN

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

China Rohs Regulation:

X

Electrical Composition Code:

M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED

Cad Overall Width:

40 mm

Mechanical Durability:

300000 cycles

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Product Compatibility:

universal LED

Net Weight:

0.022 kg

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Group Of Product:

emer swi off illum turn to rel

Device Short Name:

ZB5

Product Certifications:

UL Listed || LROS (Lloyds register of shipping) || BV || GL || CSA || DNV
