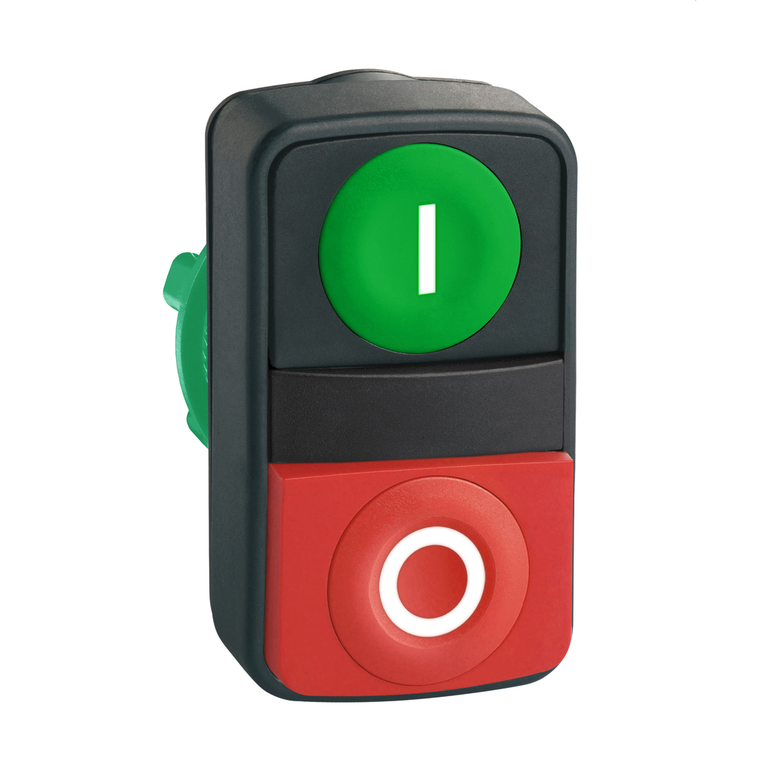

Schneider Electric ZB5AW7L3740 Plastic Double Headed Pushbuttons With P

Schneider Electric ZB5AW7L3740 Plastic Double Headed Pushbuttons With P

Schneider Electric
SKU:
ZB5AW7L3740
|
UPC:
3.38912E+12
Availability:
Contact us to confirm availability and lead times.
$45.60
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This double head has 1 red, 1 green button and 1 central white pilot light, it provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its pilot light, clear colors. It is also distinguishable by touch due to flush and projecting elements. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Additional Information
Cad Overall Height:
50 mm
Net Weight:
0.023 kg
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Cad Overall Width:
30 mm
Head Type:
standard
Warranty:
18 months
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Storage:
-40-70 °C
Shape Of Signaling Unit Head:
rectangular
Operators Description:
green unmarked - red unmarked
Station Name:
XALD 1 cut-out
Circularity Profile:
ENVEOLI1710010EN
Reach Free Of Svhc:
Yes
Electrical Shock Protection Class:
class II IEC 60536
Operator Profile:
1 flush - 1 projecting push-buttons - 1 central pilot light
Mercury Free:
Yes
Ambient Air Temperature For Operation:
-25-70 °C
Bezel Material:
dark grey plastic
Standards:
EN/IEC 60947-5-4 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-1 || JIS C8201-1
Product Or Component Type:
head for illuminated double-headed push-button
Environmental Disclosure:
ENVPEP1710010EN
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sale Per Indivisible Quantity:
1
Range Of Product:
Harmony XB5
China Rohs Regulation:
X
Sustainable Offer Status:
Green Premium product
Device Short Name:
ZB5
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Toxic Heavy Metal Free:
Yes
Ik Degree Of Protection:
IK05 IEC 50102
Product Certifications:
LROS (Lloyds register of shipping) || BV || GL || CSA || UL Listed || DNV
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Product Compatibility:
integral LED
Device Presentation:
basic sub-assemblies
Cad Overall Depth:
35 mm
Mounting Diameter:
22 mm
Type Of Operator:
spring return
Ip Degree Of Protection:
IP66 || IP69 || IP69K
Operator Profile:
green flush, unmarked || red projecting, unmarked
Rohs Exemption Information:
Yes
Mechanical Durability:
1000000 cycles
