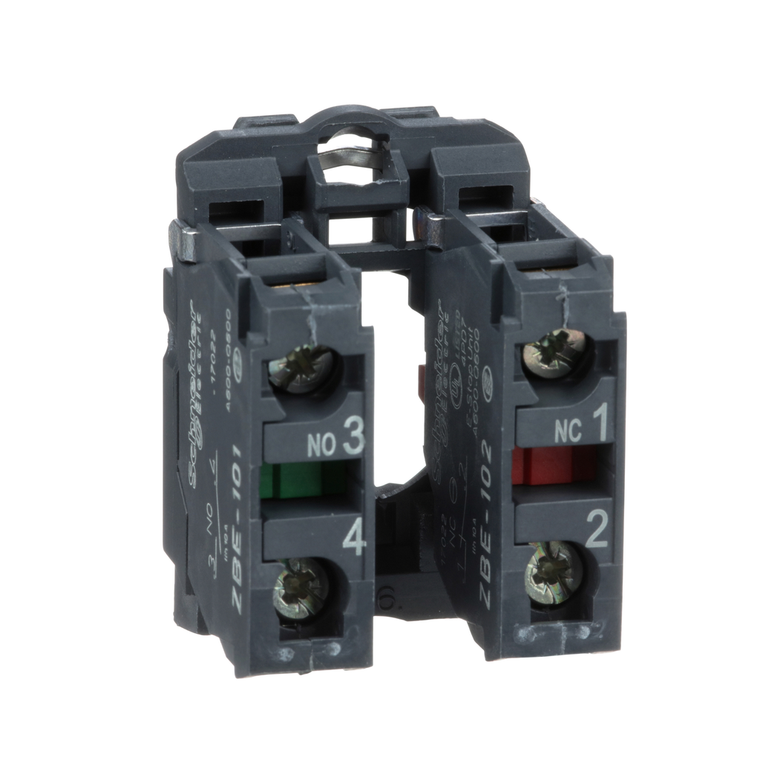

Schneider Electric ZB5AZ105 Screw Terminal Contact B

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AZ105 Screw Terminal Contact B

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AZ105

UPC:

3389110925760

MPN:

Condition:

New

Standards:

IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-5-4 || IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1

Head Type:

standard

Contacts Type And Composition:

1 NO + 1 NC

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Environmental Disclosure:

ENVPEP1710010EN

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

China Rohs Regulation:

X

Ambient Air Temperature For Storage:

-40-70 °C

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Toxic Heavy Metal Free:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Contact Operation:

slow-break

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Device Short Name:

ZB5

Ambient Air Temperature For Operation:

-40-70 °C

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Sale Per Indivisible Quantity:

1

Device Composition:

fixing collar || body

Range Of Product:

Harmony XB5

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Product Or Component Type:

complete body/contact assembly

Reach Free Of Svhc:

Yes

Device Presentation:

basic sub-assemblies

Cad Overall Depth:

32 mm

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Electrical Reliability:

λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Circularity Profile:

ENVEOLI1710010EN

Contact Block Type:

single

Sustainable Offer Status:

Green Premium product

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Protective Treatment:

TH

Terminals Description Iso N°1:

(13-14)NO || (11-12)NC

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Warranty:

18 months

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Cad Overall Height:

42 mm

Product Certifications:

LROS (Lloyds register of shipping) || UL || DNV || CSA || BV || GL

Rohs Exemption Information:

Yes

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Positive Opening:

with IEC 60947-5-1 appendix K

Ip Degree Of Protection:

IP20 IEC 60529

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Cad Overall Width:

30 mm

Fixing Collar Material:

plastic

Mechanical Durability:

10000000 cycles

Mercury Free:

Yes

Contacts Usage:

standard contacts

Contacts Material:

silver alloy (Ag/Ni)
