Schneider Electric ZB5CH313 Push-Push Square Ill. Hea

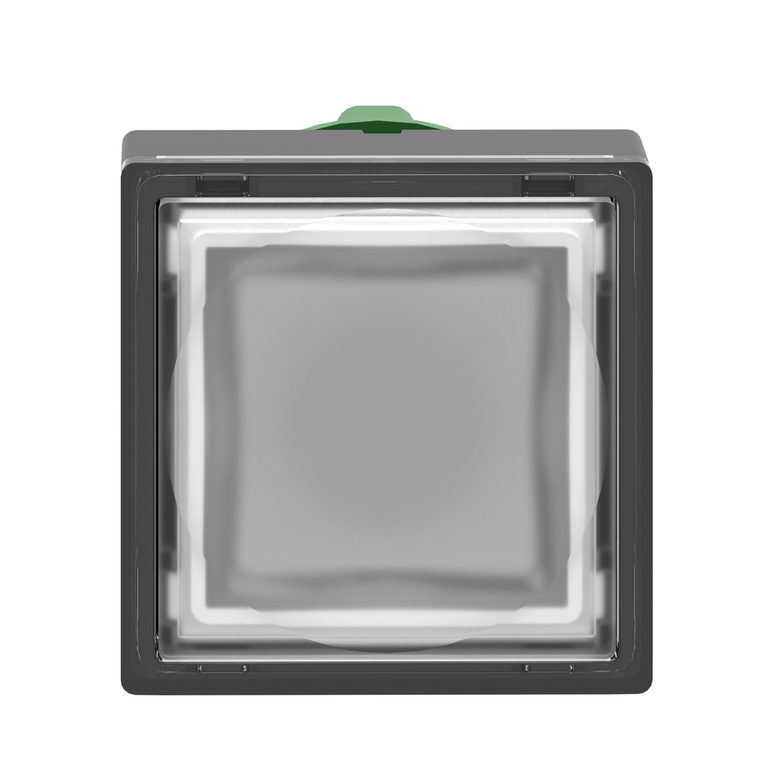

This white flush illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Shape Of Signaling Unit Head:
- square
- Circularity Profile:
- ENVEOLI1710010EN
- Mercury Free:
- Yes
- Operator Profile:
- white flush, unmarked
- Standards:
- IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-5-1 || UL 508 || IEC 60947-5-5 || IEC 60947-5-4 || JIS C8201-1
- Net Weight:
- 0.018 kg
- Product Compatibility:
- universal LED
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Device Presentation:
- basic element
- Protective Treatment:
- TH
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Ik Degree Of Protection:
- IK05 IEC 50102
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Sustainable Offer Status:
- Green Premium product
- Sale Per Indivisible Quantity:
- 1
- Ip Degree Of Protection:
- IP66 IEC 60529
- Environmental Disclosure:
- ENVPEP1710010EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Cad Overall Depth:
- 29 mm
- Cad Overall Width:
- 30 mm
- Range Of Product:
- Harmony XB5
- Mounting Diameter:
- 22 mm
- Ambient Air Temperature For Operation:
- -25-70 °C
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Toxic Heavy Metal Free:
- Yes
- Rohs Exemption Information:
- Yes
- Electrical Shock Protection Class:
- class II IEC 60536
- Warranty:
- 18 months
- Ambient Air Temperature For Storage:
- -40-70 °C
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Reach Free Of Svhc:
- Yes
- Electrical Composition Code:
- M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mechanical Durability:
- 5000000 cycles
- Bezel Material:
- dark grey plastic
- China Rohs Regulation:
- X
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Product Or Component Type:
- head for illuminated push-button
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Cad Overall Height:
- 30 mm
- Device Short Name:
- ZB5
- Product Certifications:
- BV || LROS (Lloyds register of shipping) || GL || DNV || CSA || UL Listed
- Head Type:
- standard
- Type Of Operator:
- push-push
