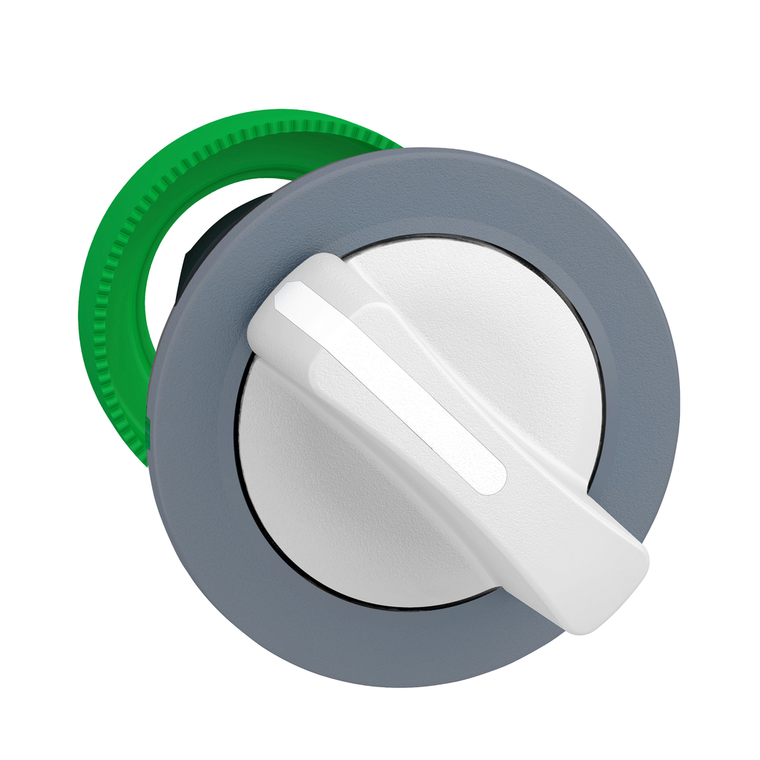

Schneider Electric ZB5FD201C0 Flsmntd White Sel Sw Head 2Pos Stay Put
Schneider Electric
$28.62
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Head Type:
- built-in-flush
- Range Of Product:
- Harmony XB5
- Type Of Operator:
- stay put
- Ambient Air Temperature For Operation:
- -40-70 °C
- Toxic Heavy Metal Free:
- Yes
- China Rohs Regulation:
- X
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Sale Per Indivisible Quantity:
- 1
- Mounting Diameter:
- 30.5 mm
- Cad Overall Height:
- 37 mm
- Protective Treatment:
- TH
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
- Shape Of Signaling Unit Head:
- round
- Cad Overall Depth:
- 46 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Width:
- 37 mm
- Overvoltage Category:
- class II IEC 60536
- Mechanical Durability:
- 1000000 cycles
- Mercury Free:
- Yes
- Operator Position Information:
- 2 positions 90°
- Device Presentation:
- basic element
- Reach Free Of Svhc:
- Yes
- Device Short Name:
- ZB5
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ambient Air Temperature For Storage:
- -40-70 °C
- Product Or Component Type:
- head for selector switch
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Net Weight:
- 0.031 kg
- Ik Degree Of Protection:
- IK03 IEC 50102
- Rohs Exemption Information:
- Yes
- Operator Profile:
- white standard handle
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Bezel Material:
- plastic colour plated grey
- Standards:
- EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1
- Product Certifications:
- LROS (Lloyds register of shipping) || DNV || BV || UL Listed || GL || CSA
