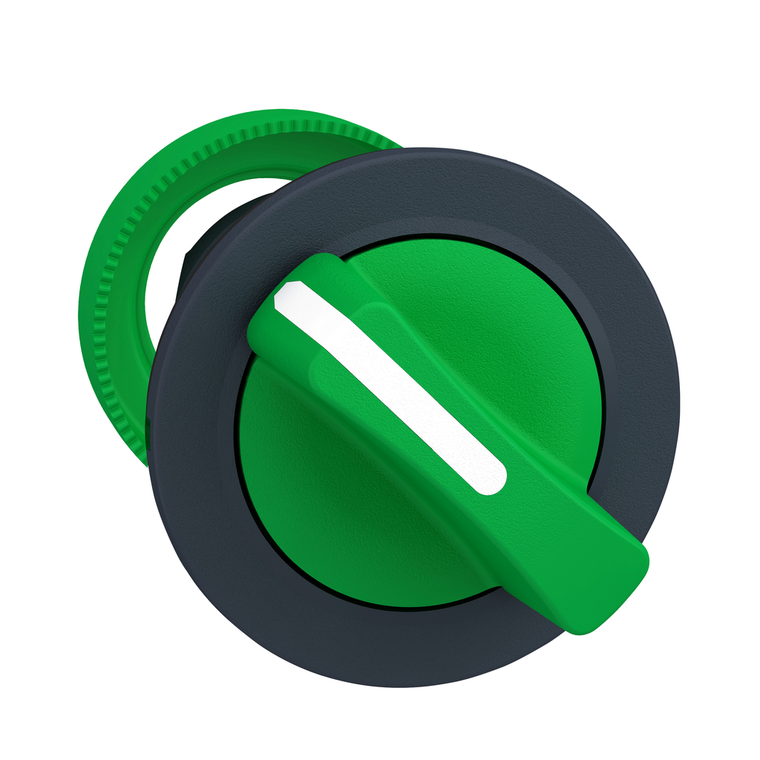

Schneider Electric ZB5FD203 Flush Mounted Green Selector Switch Head
Schneider Electric
$24.30
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5FD203 Flush Mounted Green Selector Switch Head
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP66 protection, making it ideal for operation in harsh environments.
- Device Short Name:
- ZB5
- Sale Per Indivisible Quantity:
- 1
- Reach Free Of Svhc:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Operator Profile:
- green standard handle
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Overvoltage Category:
- class II IEC 60536
- Cad Overall Height:
- 37 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Protective Treatment:
- TH
- Head Type:
- built-in-flush
- Mounting Diameter:
- 30.5 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Mechanical Durability:
- 1000000 cycles
- Net Weight:
- 0.031 kg
- Ik Degree Of Protection:
- IK03 IEC 50102
- Mercury Free:
- Yes
- Type Of Operator:
- stay put
- Range Of Product:
- Harmony XB5
- Cad Overall Depth:
- 46 mm
- Bezel Material:
- dark grey plastic
- Ambient Air Temperature For Operation:
- -40-70 °C
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- X
- Circularity Profile:
- ENVEOLI1710010EN
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
- Toxic Heavy Metal Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operator Position Information:
- 2 positions 90°
- Standards:
- EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || JIS C8201-5-1 || JIS C8201-1
- Shape Of Signaling Unit Head:
- round
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Or Component Type:
- head for selector switch
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69K || IP69
- Cad Overall Width:
- 37 mm
- Product Certifications:
- BV || GL || CSA || LROS (Lloyds register of shipping) || DNV || UL Listed
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Environmental Disclosure:
- ENVPEP1710010EN
- Datasheet:
- View
