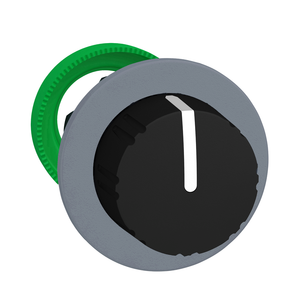

Schneider Electric ZB5FD29C0 Flmnt Blk Selsw Hd Knled Knob2Pos Stypt
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Cad Overall Height:
- 37 mm
- Range Of Product:
- Harmony XB5
- Device Short Name:
- ZB5
- Operator Profile:
- black knurled knob
- Reach Free Of Svhc:
- Yes
- Mechanical Durability:
- 1000000 cycles
- Mercury Free:
- Yes
- Mounting Diameter:
- 30.5 mm
- Bezel Material:
- plastic colour plated grey
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Device Presentation:
- basic element
- Ik Degree Of Protection:
- IK03 IEC 50102
- Product Or Component Type:
- head for selector switch
- Net Weight:
- 0.034 kg
- Operator Position Information:
- 2 positions 90°
- Cad Overall Width:
- 37 mm
- China Rohs Regulation:
- X
- Standards:
- EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || UL 508 || CSA C22.2 No 14 || JIS C8201-1
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || C15 1
- Head Type:
- built-in-flush
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Type Of Operator:
- stay put
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shape Of Signaling Unit Head:
- round
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Overvoltage Category:
- class II IEC 60536
- Cad Overall Depth:
- 46 mm
- Toxic Heavy Metal Free:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Protective Treatment:
- TH
- Product Certifications:
- LROS (Lloyds register of shipping) || GL || BV || UL Listed || CSA || DNV
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ambient Air Temperature For Operation:
- -40-70 °C
- Datasheet:
- View
