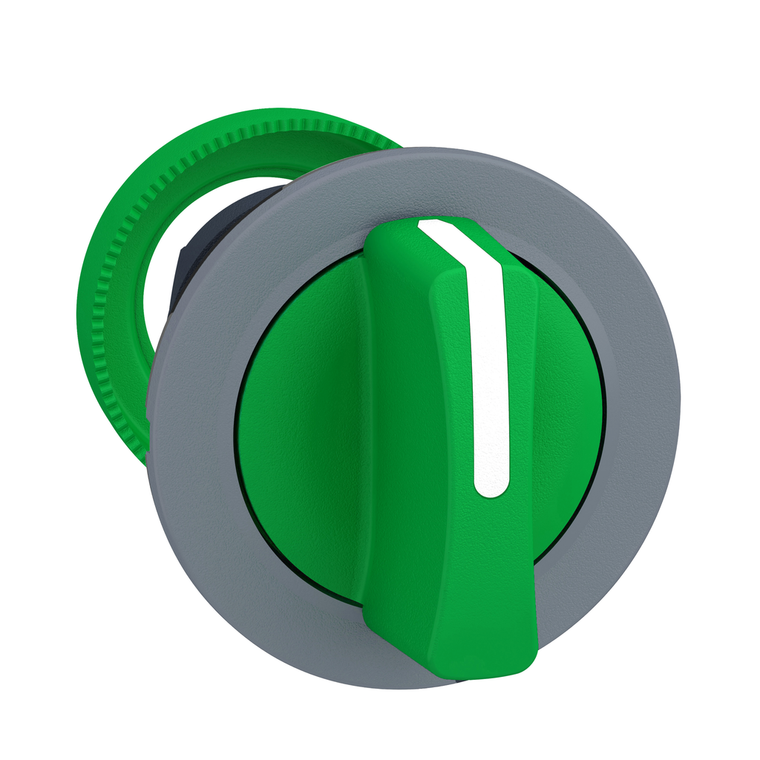

Schneider Electric ZB5FD303C0 Flsmntd Green Sel Sw Head 3Pos Stay Put
Schneider Electric
$29.15
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5FD303C0 Flsmntd Green Sel Sw Head 3Pos Stay Put
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity:
- 1
- Overvoltage Category:
- class II IEC 60536
- Shape Of Signaling Unit Head:
- round
- Operator Profile:
- green standard handle
- Bezel Material:
- plastic colour plated grey
- Device Short Name:
- ZB5
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mounting Diameter:
- 30.5 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cad Overall Height:
- 37 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mechanical Durability:
- 1000000 cycles
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Operator Position Information:
- 3 positions +/- 45°
- Ik Degree Of Protection:
- IK03 IEC 50102
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Width:
- 37 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Type Of Operator:
- stay put
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- X
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Toxic Heavy Metal Free:
- Yes
- Product Certifications:
- GL || DNV || CSA || BV || LROS (Lloyds register of shipping) || UL Listed
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Product Or Component Type:
- head for selector switch
- Ambient Air Temperature For Storage:
- -40-70 °C
- Standards:
- UL 508 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-1
- Cad Overall Depth:
- 46 mm
- Range Of Product:
- Harmony XB5
- Device Presentation:
- basic element
- Mercury Free:
- Yes
- Reach Free Of Svhc:
- Yes
- Net Weight:
- 0.031 kg
- Protective Treatment:
- TH
- Head Type:
- built-in-flush
- Datasheet:
- View
