Schneider Electric ZB5FD7C0 Flmnt Black Selsw Head 3Pos Ret Lt-Cent

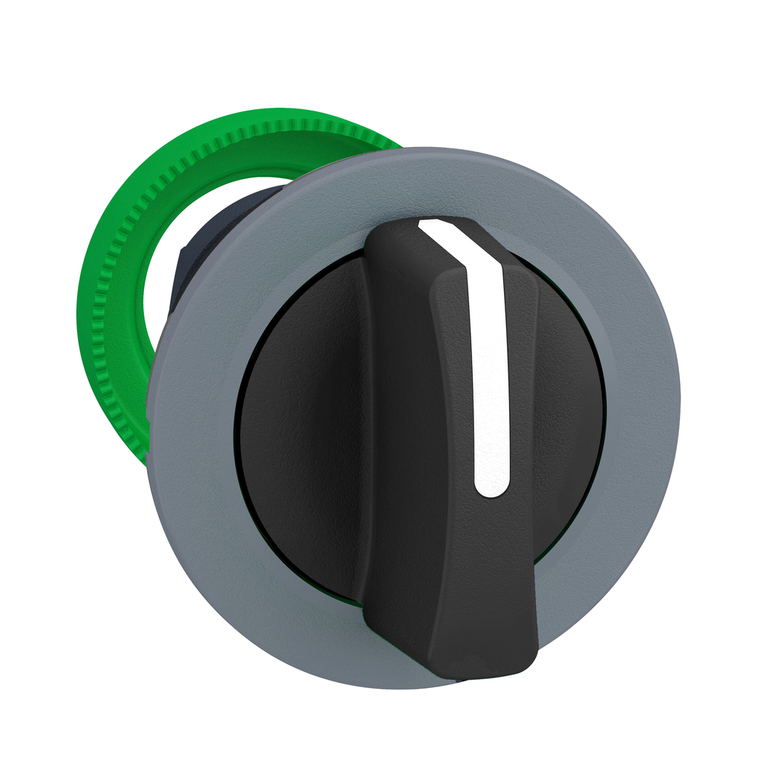

This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
- Device Presentation:
- basic element
- Device Short Name:
- ZB5
- Ik Degree Of Protection:
- IK03 IEC 50102
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Depth:
- 46 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Product Or Component Type:
- head for selector switch
- Ambient Air Temperature For Operation:
- -40-70 °C
- Bezel Material:
- plastic colour plated grey
- Operator Position Information:
- 3 positions +/- 45°
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards:
- UL 508 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1
- Net Weight:
- 0.031 kg
- Overvoltage Category:
- class II IEC 60536
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Toxic Heavy Metal Free:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Range Of Product:
- Harmony XB5
- China Rohs Regulation:
- X
- Product Certifications:
- LROS (Lloyds register of shipping) || GL || UL Listed || DNV || CSA || BV
- Type Of Operator:
- left to centre spring return
- Cad Overall Height:
- 37 mm
- Head Type:
- built-in-flush
- Protective Treatment:
- TH
- Mounting Diameter:
- 30.5 mm
- Shape Of Signaling Unit Head:
- round
- Rohs Exemption Information:
- Yes
- Cad Overall Width:
- 37 mm
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Mechanical Durability:
- 1000000 cycles
- Sale Per Indivisible Quantity:
- 1
- Operator Profile:
- black standard handle
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Mercury Free:
- Yes
- Reach Free Of Svhc:
- Yes
