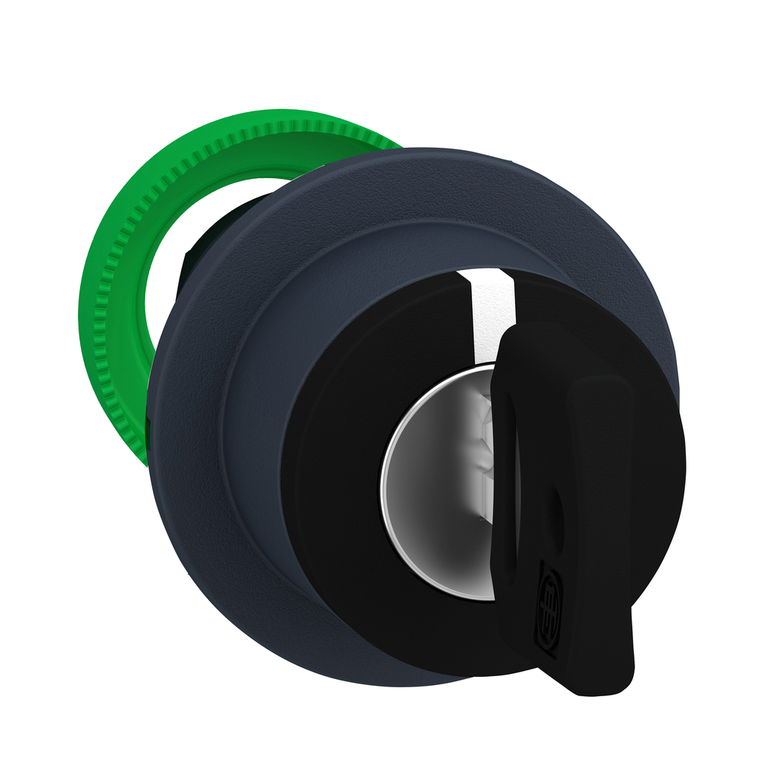

Schneider Electric ZB5FG3 Flush Mounted Selector Switch Head Key 4

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB5FG3 Flush Mounted Selector Switch Head Key 4

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5FG3

UPC:

3.60648E+12

MPN:

Condition:

New

Standards:

UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-1

Electrical Composition Code:

C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3

Product Or Component Type:

head for key selector switch

Device Short Name:

ZB5

Shape Of Signaling Unit Head:

round

Sustainable Offer Status:

Green Premium product

Ik Degree Of Protection:

IK03 IEC 50102

Overvoltage Category:

class II IEC 60536

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Type Of Keylock:

key 455

Rohs Exemption Information:

Yes

Head Type:

built-in-flush

Net Weight:

0.069 kg

Mercury Free:

Yes

Cad Overall Depth:

72 mm

Key Withdrawal Position:

center

Operator Position Information:

3 positions +/- 45°

Cad Overall Height:

37 mm

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Mechanical Durability:

1000000 cycles

Range Of Product:

Harmony XB5

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Type Of Operator:

stay put

Ambient Air Temperature For Storage:

-40-70 °C

Mounting Diameter:

50 mm

Environmental Disclosure:

ENVPEP1710010EN

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Protective Treatment:

TH

Circularity Profile:

ENVEOLI1710010EN

Ambient Air Temperature For Operation:

-40-70 °C

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

China Rohs Regulation:

X

Operator Profile:

black key switch

Cad Overall Width:

37 mm

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Sale Per Indivisible Quantity:

1

Product Certifications:

UL Listed || DNV || GL || BV || CSA || LROS (Lloyds register of shipping)

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Bezel Material:

dark grey plastic

Device Presentation:

basic element

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Datasheet:

View
