Schneider Electric ZB5FH053C0 Flmnt Orange Cap Ill Pbheadled Push Push
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

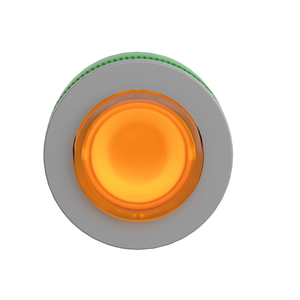

This 30.5mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Mounting Diameter:
- 30.5 mm
- Device Presentation:
- basic element
- Ik Degree Of Protection:
- IK03 IEC 50102
- Toxic Heavy Metal Free:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Device Short Name:
- ZB5F
- Protective Treatment:
- TH
- Product Or Component Type:
- head for illuminated push-button
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Product Certifications:
- UL Listed || CSA
- Ambient Air Temperature For Storage:
- -40-70 °C
- China Rohs Regulation:
- X
- Operator Profile:
- orange flush, unmarked
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Bezel Material:
- plastic colour plated grey
- Electrical Composition Code:
- C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || C9 3 single front mounting
- Cad Overall Depth:
- 30 mm
- Reach Free Of Svhc:
- Yes
- Net Weight:
- 0.03 kg
- Shape Of Signaling Unit Head:
- round
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Head Type:
- built-in-flush
- Standards:
- UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Type Of Operator:
- push-push
- Mercury Free:
- Yes
- Overvoltage Category:
- class II IEC 60536
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Warranty:
- 18 months
- Ambient Air Temperature For Operation:
- -40-70 °C
- Range Of Product:
- Harmony XB5
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Compatibility:
- universal LED
- Mechanical Durability:
- 500000 cycles
- Sale Per Indivisible Quantity:
- 1
- Cad Overall Height:
- 37 mm
- Cad Overall Width:
- 37 mm
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Datasheet:
- View
