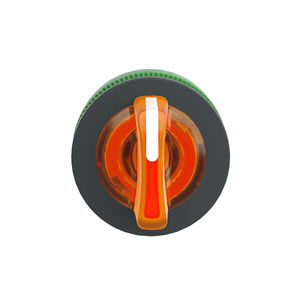

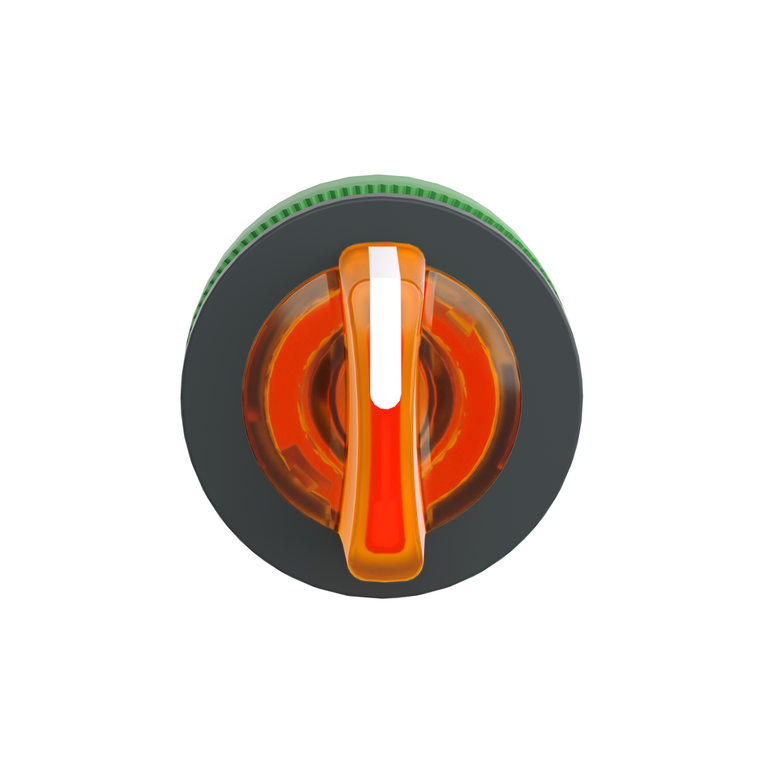

Schneider Electric ZB5FK1553 Flush Mounted Orange Illum Selector Swit

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5FK1553 Flush Mounted Orange Illum Selector Swit

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5FK1553

UPC:

3606481339591

MPN:

Condition:

New

Reach Free Of Svhc:

Yes

Operator Profile:

orange standard handle

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Net Weight:

0.03 kg

Overvoltage Category:

class II IEC 60536

Device Short Name:

ZB5

Head Type:

built-in-flush

Operator Position Information:

3 positions +/- 45°

Range Of Product:

Harmony XB5

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Toxic Heavy Metal Free:

Yes

Standards:

UL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-5-1 || JIS C8201-1

Sustainable Offer Status:

Green Premium product

Mechanical Durability:

500000 cycles

Product Or Component Type:

head for illuminated selector switch

Circularity Profile:

ENVEOLI1710010EN

Product Certifications:

GL || DNV || BV || LROS (Lloyds register of shipping) || CSA || UL Listed

Sale Per Indivisible Quantity:

1

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Cad Overall Width:

37 mm

Protective Treatment:

TH

Rohs Exemption Information:

Yes

China Rohs Regulation:

X

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Shape Of Signaling Unit Head:

round

Ambient Air Temperature For Storage:

-40-70 °C

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mounting Diameter:

30.5 mm

Mercury Free:

Yes

Ik Degree Of Protection:

IK03 IEC 50102

Electrical Composition Code:

M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || M4 4 single and double front mounting integral LED

Cad Overall Height:

37 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Bezel Material:

dark grey plastic

Cad Overall Depth:

46 mm

Type Of Operator:

to centre spring return

Ambient Air Temperature For Operation:

-40-70 °C

Environmental Disclosure:

ENVPEP1710010EN

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Product Compatibility:

universal LED
