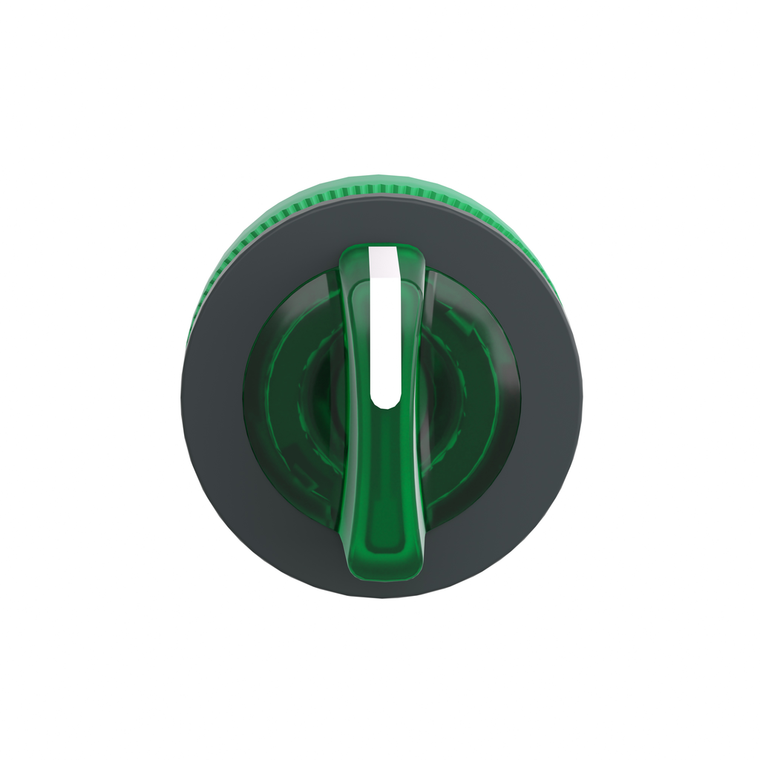

Schneider Electric ZB5FK1833 Flush Mounted Green Illum Selector Switc

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5FK1833 Flush Mounted Green Illum Selector Switc

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5FK1833

UPC:

3606481339607

MPN:

Condition:

New

Product Compatibility:

universal LED

Protective Treatment:

TH

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Operator Position Information:

3 positions +/- 45°

Operator Profile:

green standard handle

Electrical Composition Code:

M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || M4 4 single and double front mounting integral LED

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Ambient Air Temperature For Storage:

-40-70 °C

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Net Weight:

0.03 kg

Mounting Diameter:

30.5 mm

Sustainable Offer Status:

Green Premium product

Cad Overall Depth:

46 mm

Cad Overall Height:

37 mm

Ambient Air Temperature For Operation:

-40-70 °C

Toxic Heavy Metal Free:

Yes

Sale Per Indivisible Quantity:

1

Type Of Operator:

right to centre spring return

Range Of Product:

Harmony XB5

Standards:

EN/IEC 60947-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-5-5 || JIS C8201-1

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Product Certifications:

BV || LROS (Lloyds register of shipping) || UL Listed || DNV || CSA || GL

Bezel Material:

dark grey plastic

Product Or Component Type:

head for illuminated selector switch

Circularity Profile:

ENVEOLI1710010EN

Mechanical Durability:

500000 cycles

China Rohs Regulation:

X

Device Short Name:

ZB5

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Overvoltage Category:

class II IEC 60536

Ik Degree Of Protection:

IK03 IEC 50102

Environmental Disclosure:

ENVPEP1710010EN

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Head Type:

built-in-flush

Reach Free Of Svhc:

Yes

Shape Of Signaling Unit Head:

round

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Cad Overall Width:

37 mm

Mercury Free:

Yes

Datasheet:

View
