Schneider Electric ZB5FL6 Flush Mounted Blue Projecting Pushbutton
Schneider Electric
$13.30
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

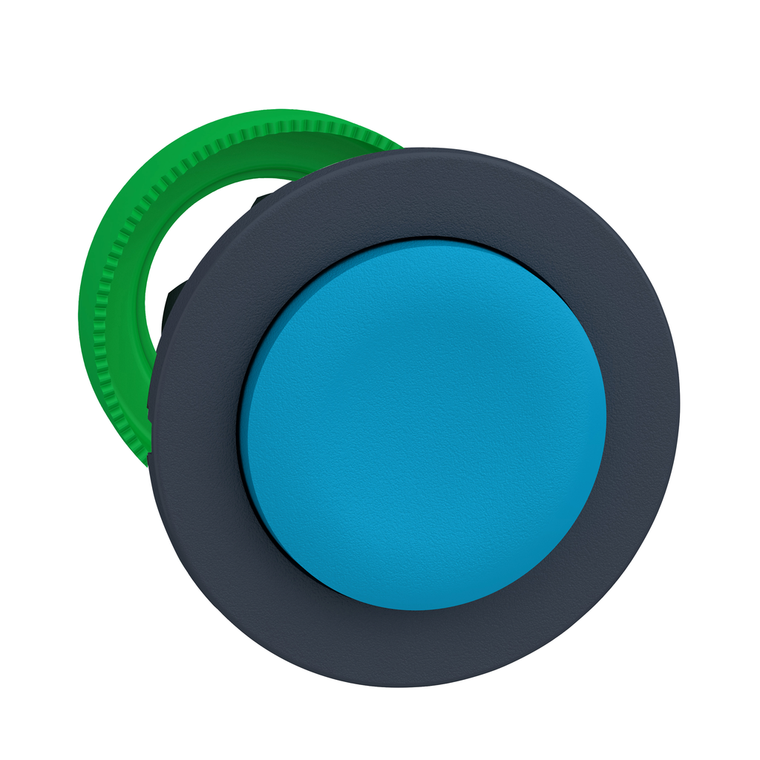

Schneider Electric ZB5FL6 Flush Mounted Blue Projecting Pushbutton
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Bezel Material:
- dark grey plastic
- Cad Overall Height:
- 37 mm
- Circularity Profile:
- ENVEOLI1710010EN
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- Product Or Component Type:
- head for non-illuminated push-button
- Sustainable Offer Status:
- Green Premium product
- Device Presentation:
- basic element
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
- Net Weight:
- 0.031 kg
- Ambient Air Temperature For Operation:
- -40-70 °C
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- China Rohs Regulation:
- X
- Shape Of Signaling Unit Head:
- round
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Range Of Product:
- Harmony XB5
- Cad Overall Width:
- 37 mm
- Operator Profile:
- blue projecting, unmarked
- Head Type:
- built-in-flush
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Product Certifications:
- GL || UL Listed || BV || CSA || LROS (Lloyds register of shipping) || DNV
- Mechanical Durability:
- 10000000 cycles
- Type Of Operator:
- spring return
- Mounting Diameter:
- 30.5 mm
- Cad Overall Depth:
- 32 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Product Compatibility:
- ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
- Ik Degree Of Protection:
- IK03 IEC 50102
- Environmental Disclosure:
- ENVPEP1710010EN
- Sale Per Indivisible Quantity:
- 1
- Standards:
- EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Overvoltage Category:
- class II IEC 60536
- Rohs Exemption Information:
- Yes
- Protective Treatment:
- TH
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Device Short Name:
- ZB5
- Mercury Free:
- Yes
- Datasheet:
- View
