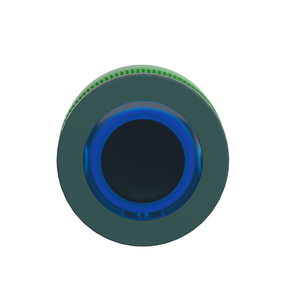

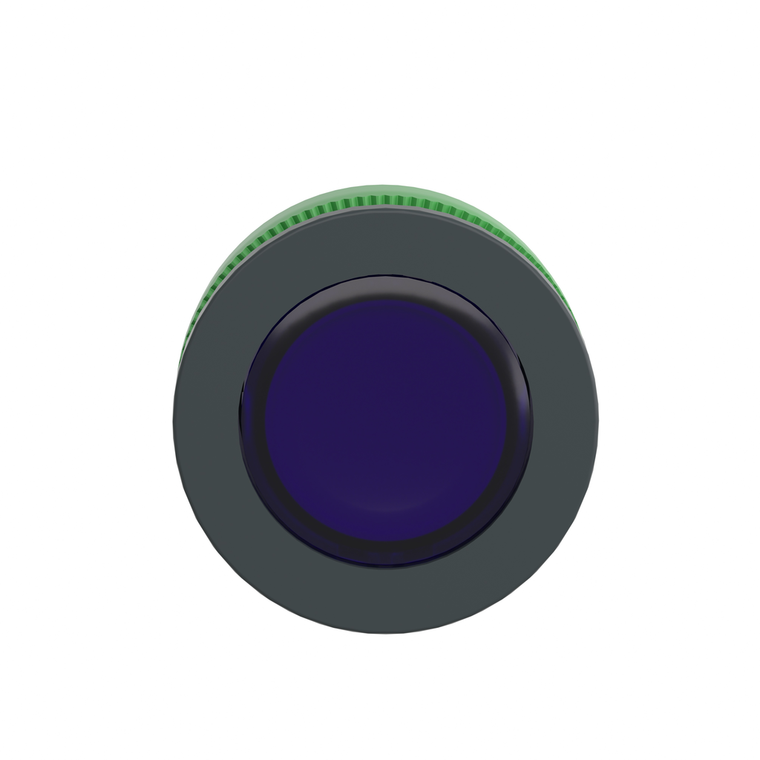

Schneider Electric ZB5FW363 Flush Mounted Blue Flush Caps Illum Push
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It comes with antimicrobial characteristics. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
- Cad Overall Height:
- 37 mm
- Product Or Component Type:
- head for illuminated push-button
- China Rohs Regulation:
- X
- Head Type:
- built-in-flush
- Device Short Name:
- ZB5
- Main Group:
- illum push-button
- Net Weight:
- 0.017 kg
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Depth:
- 30 mm
- Marking:
- unmarked
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Cap/Operator Or Lens Colour:
- blue
- Standards:
- EN/IEC 60947-5-1 || GB 14048.5 || CSA C22.2 No 14 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Overvoltage Category:
- class II IEC 60536
- Group Of Product:
- flush push integral LED
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED
- Circularity Profile:
- ENVEOLI1710010EN
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Cad Overall Width:
- 37 mm
- Ambient Air Temperature For Operation:
- -40-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Bezel Material:
- dark grey plastic
- Ambient Air Temperature For Storage:
- -40-70 °C
- Environmental Disclosure:
- ENVPEP1710010EN
- Rohs Exemption Information:
- Yes
- Type Of Operator:
- spring return
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Shape Of Signaling Unit Head:
- round
- Product Certifications:
- UL Listed || DNV || GL || BV || CSA || LROS (Lloyds register of shipping)
- Protective Treatment:
- TC
- Mechanical Durability:
- 10000000 cycles
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Product Compatibility:
- universal LED
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Operator Additional Information:
- with plain lens
- Device Presentation:
- basic element
- Ik Degree Of Protection:
- IK03 EN 50102
- Sale Per Indivisible Quantity:
- 1
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Mercury Free:
- Yes
- Reach Free Of Svhc:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Operator Profile:
- blue flush, unmarked
- Range Of Product:
- Harmony XB5
- Mounting Diameter:
- 30.5 mm
