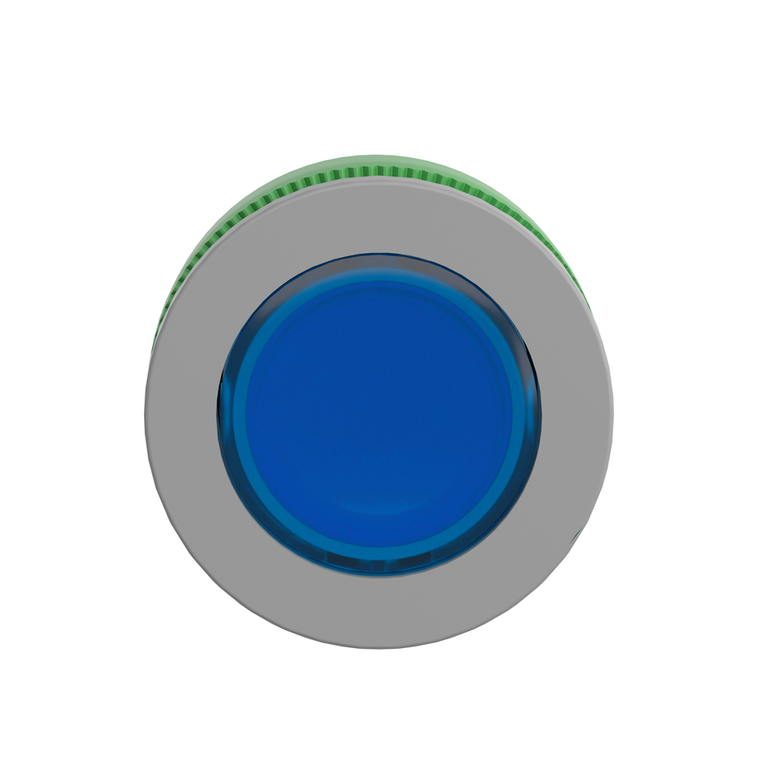

Schneider Electric ZB5FW363C0 Flsmntd Blue Cap Illum Pb Head-Int Led
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Type Of Operator:
- spring return
- Operator Profile:
- blue flush, unmarked
- Range Of Product:
- Harmony XB5
- Cad Overall Height:
- 37 mm
- Net Weight:
- 0.017 kg
- Cad Overall Width:
- 37 mm
- Main Group:
- illum push-button
- Head Type:
- built-in-flush
- Operator Additional Information:
- with plain lens
- Protective Treatment:
- TC
- Product Compatibility:
- universal LED
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Standards:
- EN/IEC 60947-5-1 || GB 14048.5 || CSA C22.2 No 14 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Storage:
- -40-70 °C
- Product Certifications:
- UL Listed || DNV || GL || BV || CSA || LROS (Lloyds register of shipping)
- Overvoltage Category:
- class II IEC 60536
- Shape Of Signaling Unit Head:
- round
- Cap/Operator Or Lens Colour:
- blue
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Group Of Product:
- flush push integral LED
- Product Or Component Type:
- head for illuminated push-button
- Ambient Air Temperature For Operation:
- -40-70 °C
- Rohs Exemption Information:
- Yes
- Marking:
- unmarked
- Ik Degree Of Protection:
- IK03 EN 50102
- Sale Per Indivisible Quantity:
- 1
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED
- Reach Free Of Svhc:
- Yes
- Device Presentation:
- basic element
- Mounting Diameter:
- 30.5 mm
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- China Rohs Regulation:
- X
- Toxic Heavy Metal Free:
- Yes
- Cad Overall Depth:
- 30 mm
- Mechanical Durability:
- 10000000 cycles
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Mercury Free:
- Yes
- Device Short Name:
- ZB5
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Bezel Material:
- plastic colour plated grey
