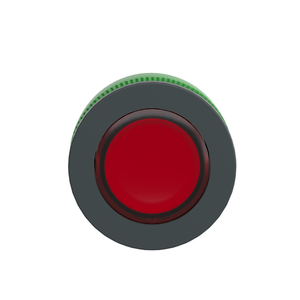

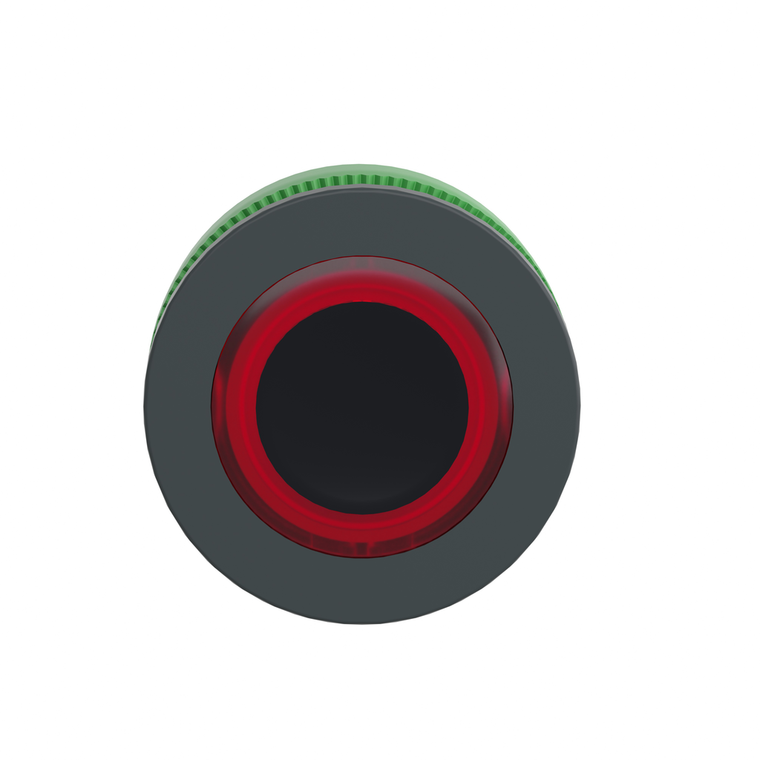

Schneider Electric ZB5FW943 Flush Mounted Red Flush Caps Illum Pushb

Schneider Electric ZB5FW943 Flush Mounted Red Flush Caps Illum Pushb

Schneider Electric
SKU:
ZB5FW943
|
UPC:
3606481340481
Availability:
Contact us to confirm availability and lead times.
$21.40
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
Additional Information
Range Of Product:
Harmony XB5
Operator Additional Information:
with illuminated ring
Device Short Name:
ZB5
Ik Degree Of Protection:
IK03 EN 50102
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Important Message:
A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Protective Treatment:
TC
Toxic Heavy Metal Free:
Yes
Product Certifications:
GL || LROS (Lloyds register of shipping) || DNV || UL Listed || BV || CSA
Product Or Component Type:
head for illuminated push-button
Overvoltage Category:
class II IEC 60536
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Sale Per Indivisible Quantity:
1
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Cad Overall Height:
37 mm
Cad Overall Width:
37 mm
Head Type:
built-in-flush
Ambient Air Temperature For Operation:
-40-70 °C
Ambient Air Temperature For Storage:
-40-70 °C
Cap/Operator Or Lens Colour:
red
Circularity Profile:
ENVEOLI1710010EN
Bezel Material:
dark grey plastic
Mounting Diameter:
30.5 mm
Net Weight:
0.017 kg
Reach Free Of Svhc:
Yes
Ip Degree Of Protection:
IP66 IEC 60529 || IP67
Type Of Operator:
spring return
Product Compatibility:
universal LED
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Sustainable Offer Status:
Green Premium product
Marking:
unmarked
Cad Overall Depth:
30 mm
Electrical Composition Code:
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED
Mechanical Durability:
10000000 cycles
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Shape Of Signaling Unit Head:
round
Rohs Exemption Information:
Yes
Operator Profile:
red flush, unmarked
China Rohs Regulation:
X
Standards:
UL 508 || GB 14048.5 || EN/IEC 60947-5-4 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-1
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Environmental Disclosure:
ENVPEP1710010EN
Group Of Product:
flush push with ring illum LED
Main Group:
illum push-button
Mercury Free:
Yes
