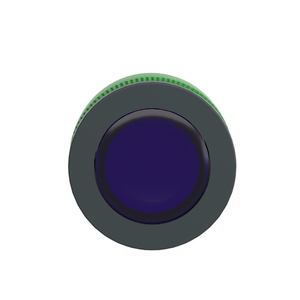

Schneider Electric ZB5FW963 Flush Mounted Blue Flush Caps Illum Push
Schneider Electric
$21.40
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Group Of Product:
- flush push with ring illum LED
- Cap/Operator Or Lens Colour:
- blue
- Rohs Exemption Information:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Operator Profile:
- blue flush, unmarked
- Head Type:
- built-in-flush
- Mounting Diameter:
- 30.5 mm
- Type Of Operator:
- spring return
- Standards:
- CSA C22.2 No 14 || GB 14048.5 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-1
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ik Degree Of Protection:
- IK03 EN 50102
- Sale Per Indivisible Quantity:
- 1
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Compatibility:
- universal LED
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Sustainable Offer Status:
- Green Premium product
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Product Or Component Type:
- head for illuminated push-button
- Product Certifications:
- BV || LROS (Lloyds register of shipping) || CSA || DNV || UL Listed || GL
- Range Of Product:
- Harmony XB5
- Net Weight:
- 0.017 kg
- Mercury Free:
- Yes
- Reach Free Of Svhc:
- Yes
- Operator Additional Information:
- with illuminated ring
- China Rohs Regulation:
- X
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Short Name:
- ZB5
- Cad Overall Height:
- 37 mm
- Main Group:
- illum push-button
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Cad Overall Width:
- 37 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Marking:
- unmarked
- Overvoltage Category:
- class II IEC 60536
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Circularity Profile:
- ENVEOLI1710010EN
- Protective Treatment:
- TC
- Environmental Disclosure:
- ENVPEP1710010EN
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED
- Bezel Material:
- dark grey plastic
- Shape Of Signaling Unit Head:
- round
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mechanical Durability:
- 10000000 cycles
- Cad Overall Depth:
- 30 mm
- Datasheet:
- View
