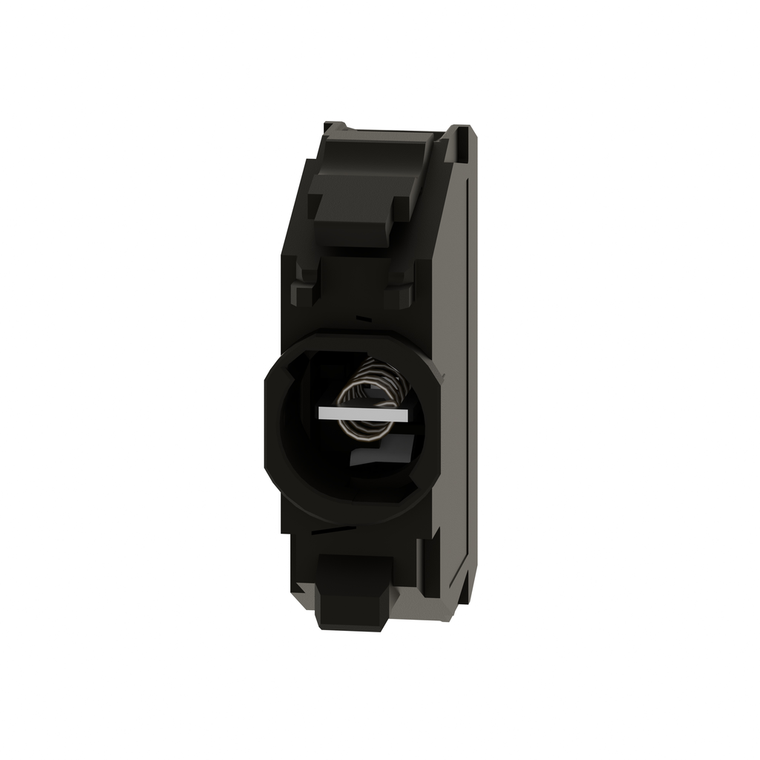

Schneider Electric ZBV6 Pilot Light Ba9S Unit

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZBV6 Pilot Light Ba9S Unit

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZBV6

UPC:

3389110089608

MPN:

Condition:

New

Warranty:

18 months

Rohs Exemption Information:

Yes

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Ambient Air Temperature For Operation:

-40-70 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Net Weight:

0.016 kg

Product Or Component Type:

light block

Standards:

IEC 60947-1 || IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || IEC 60947-5-5 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

Bulb Base:

BA 9s

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Device Presentation:

basic element

Electrical Composition Code:

M7 || M8 || MF2 || P3 || PF2

China Rohs Regulation:

X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Certifications:

CSA || UL Listed

Mounting Of Block:

front mounting

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Device Short Name:

ZBV

Mercury Free:

Yes

Protective Treatment:

TH

[Us] Rated Supply Voltage:

<= 250 V

Sale Per Indivisible Quantity:

5

Light Source:

bulb not included

Surge Withstand:

1 kV IEC 61000-4-5

Signalling Type:

steady

Range Of Product:

Harmony XB5 || Harmony XB4

[Us] Rated Supply Voltage:

250 V

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Circularity Profile:

ENVEOLI1808008EN

Electromagnetic Emission:

class B IEC 55011

Sustainable Offer Status:

Green Premium product

Service Life:

100000 h at rated voltage and 25 °C

Light Block Supply:

direct

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ip Degree Of Protection:

IP20 IEC 60529

Environmental Disclosure:

ENVPEP1808008EN

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Ambient Air Temperature For Storage:

-40-70 °C
