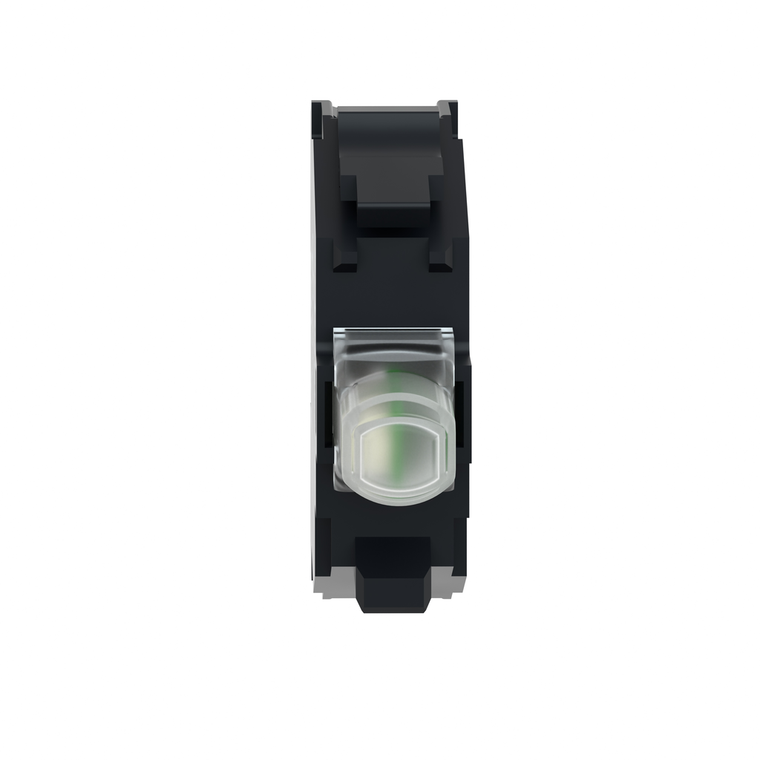

Schneider Electric ZBVJ1 12 V Led Pilot Light Bloc

Schneider Electric ZBVJ1 12 V Led Pilot Light Bloc

Schneider Electric
SKU:
ZBVJ1
|
UPC:
3389110069907
Availability:
Contact us to confirm availability and lead times.
$52.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony ZB, white light block operates with a universal LED. It is supplied with 12V AC/DC and uses screw-clamp terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Additional Information
Environmental Disclosure:
ENVPEP1808008EN
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
Resistance To Fast Transients:
2 kV IEC 61000-4-4
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Protective Treatment:
TH
Mounting Of Block:
front mounting
Range Of Product:
Harmony XB5 || Harmony XB4
Mercury Free:
Yes
Ambient Air Temperature For Operation:
-40-70 °C
Net Weight:
0.017 kg
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Device Short Name:
ZBV
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
X
Rohs Exemption Information:
Yes
[Us] Rated Supply Voltage:
12 V
Bulb Base:
integral LED
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Electrical Composition Code:
M1 || M2 || M3 || M4 || M5 || M6 || M10 || MF1 || P1 || P2 || PF1
Product Certifications:
UL Listed || CSA
Device Presentation:
basic element
Surge Withstand:
1 kV IEC 61000-4-5
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Light Block Supply:
direct
[Us] Rated Supply Voltage:
12 V AC/DC 50/60 Hz
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Ip Degree Of Protection:
IP20 IEC 60529
Signalling Type:
steady
Supply Voltage Limits:
10-15 V DC || 10.2-13.8 V AC
Service Life:
100000 h at rated voltage and 25 °C
Electromagnetic Emission:
class B IEC 55011
Current Consumption:
15 mA
Circularity Profile:
ENVEOLI1808008EN
Light Source:
universal LED
Standards:
JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-5 || UL 508 || IEC 60947-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-1
Light Source Colour:
white
Ambient Air Temperature For Storage:
-40-70 °C
Product Or Component Type:
light block
Sale Per Indivisible Quantity:
5
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Warranty:
18 months
