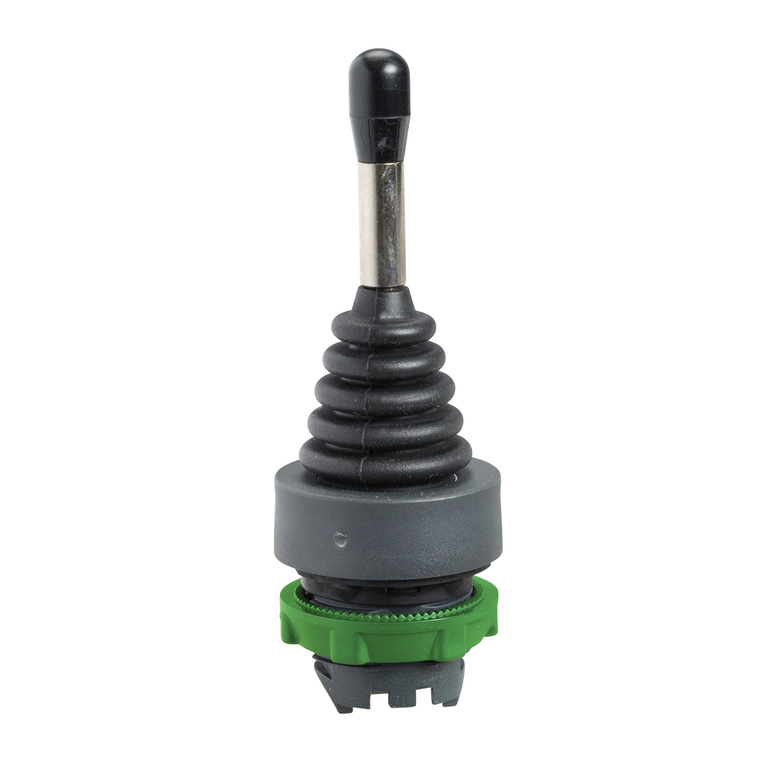

Schneider Electric ZD5PA22 Joystick Composant
This Harmony XB5 head with operating shaft for joystick controller operates with 2 direction spring return to zero position mechanism. It has a plastic bezel. This head with operating shaft provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible joystick controllers and provide a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
- Cad Overall Width:
- 30 mm
- Range Of Product:
- Harmony XB5
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Mercury Free:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Reach Free Of Svhc:
- Yes
- Cad Overall Height:
- 47 mm
- Product Or Component Type:
- head for joystick controller
- Ik Degree Of Protection:
- IK03 IEC 50102
- Protective Treatment:
- TH
- Cad Overall Depth:
- 85 mm
- Ip Degree Of Protection:
- IP66 IEC 60529
- Rohs Exemption Information:
- Yes
- Operator Direction Information:
- 2 directions
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Toxic Heavy Metal Free:
- Yes
- Device Presentation:
- basic element
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Standards:
- UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-1
- Type Of Operator:
- to zero position spring return
- Ambient Air Temperature For Operation:
- -25-70 °C
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Certifications:
- UL Listed || GL || LROS (Lloyds register of shipping) || DNV || CSA || BV
- Mechanical Durability:
- 1000000 cycles
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Net Weight:
- 0.022 kg
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Warranty:
- 18 months
- Bezel Material:
- plastic
- Operator Profile:
- 54 mm long operating shaft
- Sale Per Indivisible Quantity:
- 1
- Device Short Name:
- ZD5
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Shape Of Signaling Unit Head:
- round
- Electrical Shock Protection Class:
- class II IEC 60536
- Mounting Diameter:
- 22 mm
