Schneider Electric ZD5PA24 Joystick Composant

Schneider Electric ZD5PA24 Joystick Composant

Schneider Electric
SKU:
ZD5PA24
|
UPC:
3.38911E+12
Availability:
Contact us to confirm availability and lead times.
$307.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

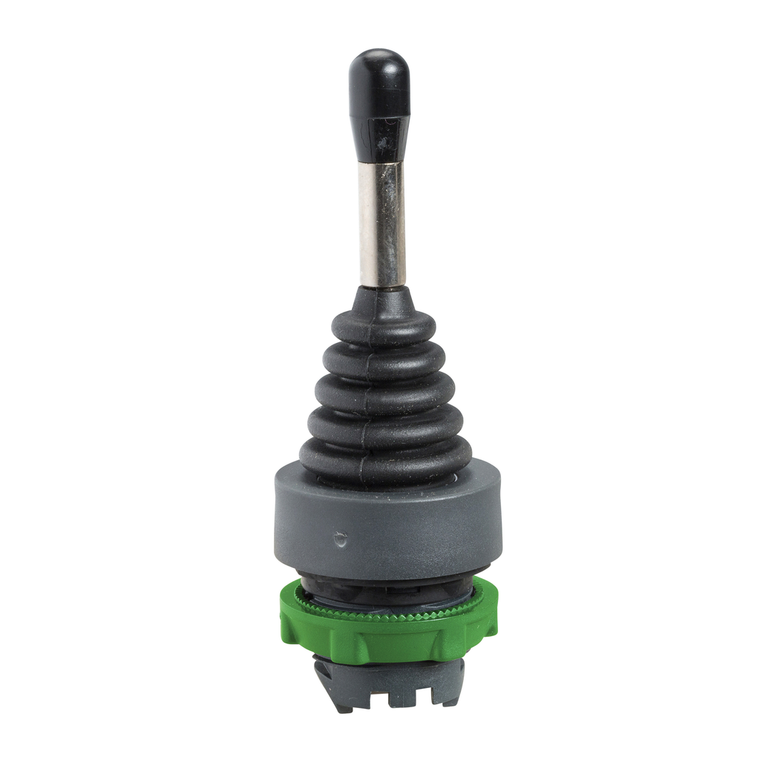

This Harmony XB5 head with operating shaft for joystick controller operates with 4 direction spring return to zero position mechanism. It has a plastic bezel. This head with operating shaft provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible joystick controllers and provide a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Additional Information
Electrical Shock Protection Class:
class II IEC 60536
Toxic Heavy Metal Free:
Yes
Net Weight:
0.022 kg
Operator Direction Information:
4 directions
Sale Per Indivisible Quantity:
1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Operator Profile:
54 mm long operating shaft
Cad Overall Depth:
85 mm
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Bezel Material:
plastic
Product Or Component Type:
head for joystick controller
Device Short Name:
ZD5
Ip Degree Of Protection:
IP66 IEC 60529
Protective Treatment:
TH
Reach Free Of Svhc:
Yes
Rohs Exemption Information:
Yes
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Mechanical Durability:
1000000 cycles
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Certifications:
UL Listed || GL || BV || CSA || LROS (Lloyds register of shipping) || DNV
Ambient Air Temperature For Operation:
-25-70 °C
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation:
X
Warranty:
18 months
Type Of Operator:
to zero position spring return
Mounting Diameter:
22 mm
Cad Overall Height:
47 mm
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Standards:
JIS C8201-5-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-1
Device Presentation:
basic element
Cad Overall Width:
30 mm
Ambient Air Temperature For Storage:
-40-70 °C
Shape Of Signaling Unit Head:
round
Range Of Product:
Harmony XB5
Mercury Free:
Yes
Ik Degree Of Protection:
IK03 IEC 50102
