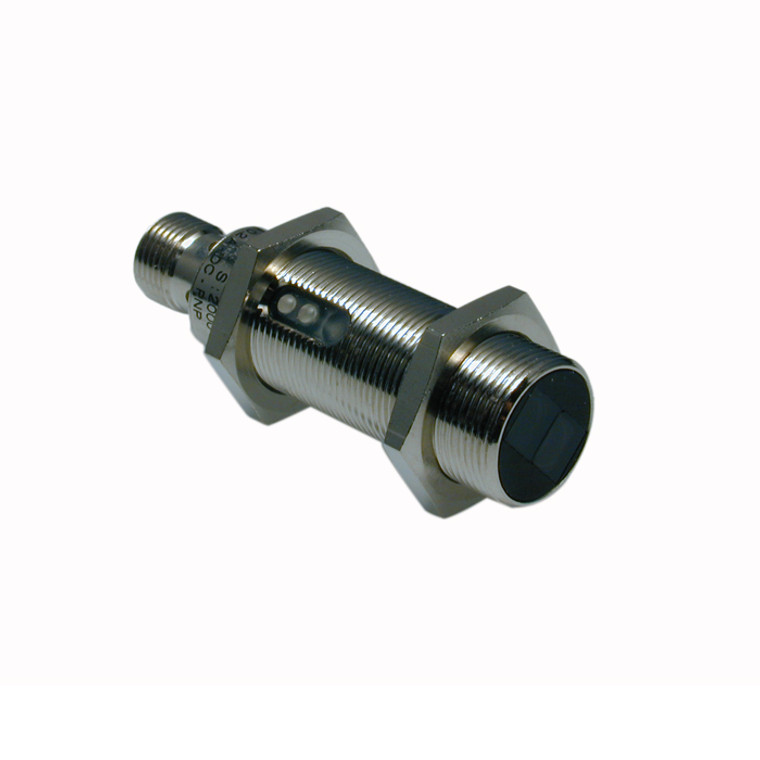

SensoPart FE 18 RL-PSL4 Through-beam laser sensor
Sensopart
The SensoPart FE 18 RL-PSL4 is a high-performance through-beam laser sensor designed for precise detection tasks. With a maximum working distance of 50 meters, this receiver unit operates using a photoelectric through-beam sensor principle, ensuring reliable performance in various industrial applications. The sensor features a PNP normally open (N.O.) switching output and is equipped with a 4-pin M12 plug for easy connectivity. It operates at a velocity of 1000 Hz, making it suitable for high-speed applications. The red laser light source is classified as Class 1, ensuring safety during operation. The sensor is built to withstand harsh environments, with an enclosure rating of IP 67 and a temperature range of -20 to +60°C. For detailed specifications, refer to the datasheet, catalog, brochure, and operating instructions available through the provided links.
- Sensor principle:
- Photoelectric through-beam sensor (sender/receiver)
- Series:
- M18
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 50000
- Velocity [Hz]:
- 1000
- Adjustment:
- Control input
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Plug M12, 4-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
