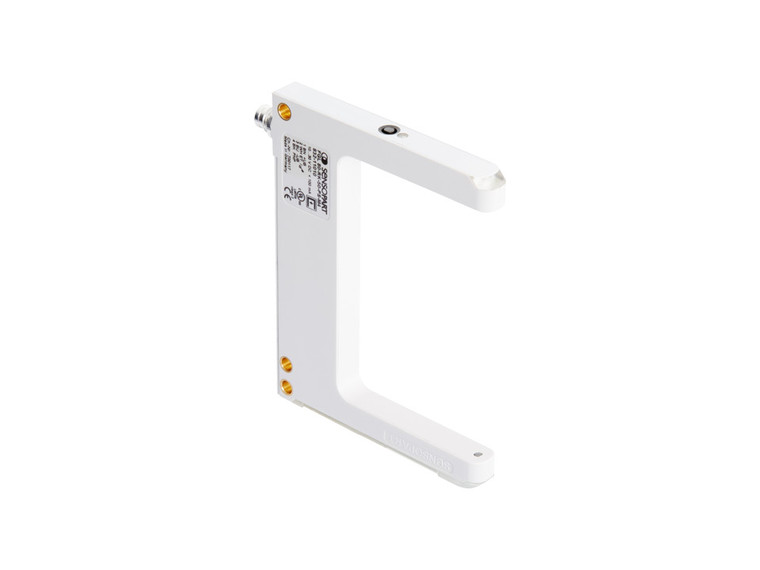

The SensoPart FGL 120-IK-50-NSM4 Infrared Fork Sensors are designed for precision and reliability in detecting small parts as tiny as 0.2 mm. With a fork width of 120 mm, these sensors are ideal for a variety of applications. They feature a robust metal plug connection with an M8 4-pin configuration, ensuring secure and stable connectivity. The sensors offer versatile mounting possibilities, making them adaptable to different setups. Additionally, they provide easy sensor adjustment through teach-in and control input, and the N.O./N.C. switchable function adds to their flexibility. Constructed from durable plastic, these infrared sensors are built to withstand demanding environments.
- Series:
- Optical fork
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 120
- Velocity [Hz]:
- 2000
- Adjustment:
- Teach-in
- Light source:
- LED, infrared
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Plug M8, 4-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
- QN-QUOTE-REQUEST:
- true
